A four-cylinder, two-stroke 2.4-L diesel engine that operates on an ideal Diesel cycle has a compression ratio of 22 and

[answerhappygod]

A Four Cylinder Two Stroke 2 4 L Diesel Engine That Operates On An Ideal Diesel Cycle Has A Compression Ratio Of 22 And 1 (15.81 KiB) Viewed 62 times

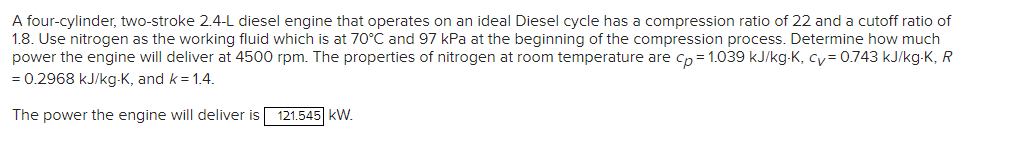

A four-cylinder, two-stroke 2.4-L diesel engine that operates on an ideal Diesel cycle has a compression ratio of 22 and a cutoff ratio of 1.8. Use nitrogen as the working fluid which is at 70°C and 97 kPa at the beginning of the compression process. Determine how much power the engine will deliver at 4500 rpm. The properties of nitrogen at room temperature are cp = 1.039 kJ/kg-K, cy= 0.743 kJ/kg-K, R = 0.2968 kJ/kg-K, and k=1.4. The power the engine will deliver is 121.545 kW.
