A simple pin-connected truss is loaded and supported as shown. The truss is constructed from three aluminum members, eac

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A simple pin-connected truss is loaded and supported as shown. The truss is constructed from three aluminum members, eac

Post by answerhappygod »

A Simple Pin Connected Truss Is Loaded And Supported As Shown The Truss Is Constructed From Three Aluminum Members Eac 1
A Simple Pin Connected Truss Is Loaded And Supported As Shown The Truss Is Constructed From Three Aluminum Members Eac 1 (145.94 KiB) Viewed 51 times

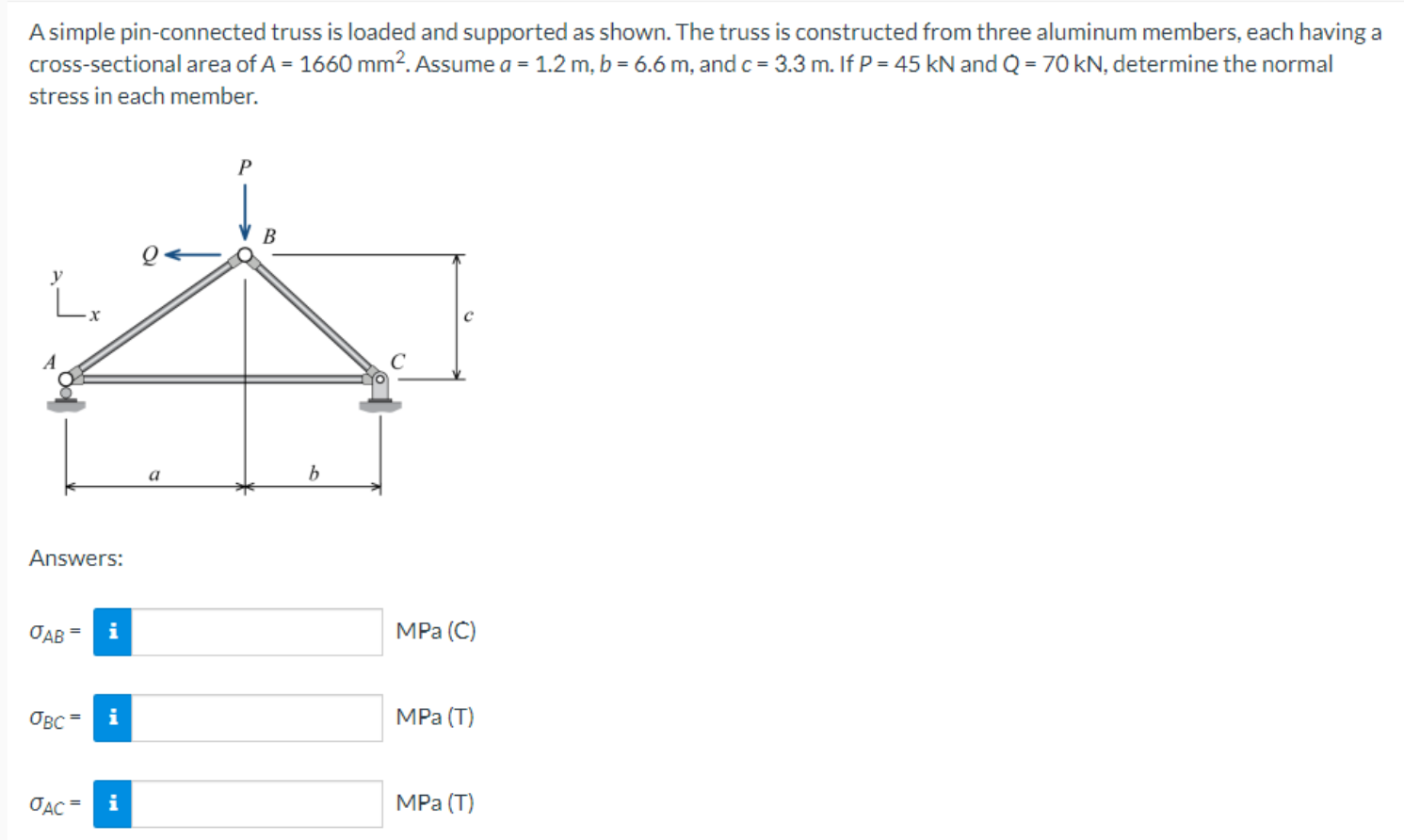

A simple pin-connected truss is loaded and supported as shown. The truss is constructed from three aluminum members, each having a cross-sectional area of A = 1660 mm². Assume a = 1.2 m, b = 6.6 m, and c = 3.3 m. If P = 45 kN and Q = 70 kN, determine the normal stress in each member. y L. Answers: JAB= OBC= JAC i i a P B b MPa (C) MPa (T) MPa (T)
