A thin polymer plate PQR is deformed so that corner Q is displaced downward 0.9 mm to new position Q', as shown in. Dete

Post by answerhappygod »

A Thin Polymer Plate Pqr Is Deformed So That Corner Q Is Displaced Downward 0 9 Mm To New Position Q As Shown In Dete 1
A Thin Polymer Plate Pqr Is Deformed So That Corner Q Is Displaced Downward 0 9 Mm To New Position Q As Shown In Dete 1 (173.43 KiB) Viewed 38 times

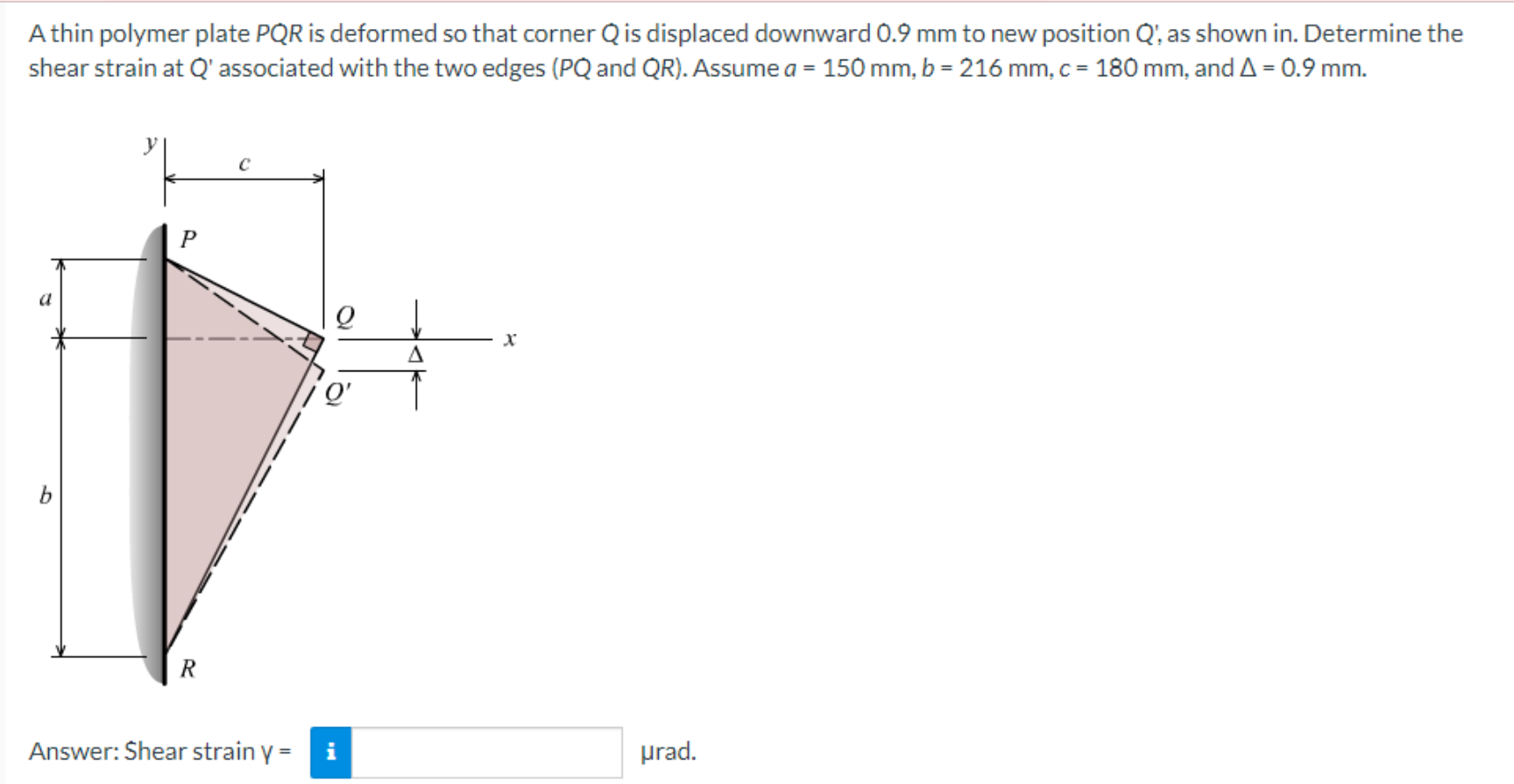

A thin polymer plate PQR is deformed so that corner Q is displaced downward 0.9 mm to new position Q', as shown in. Determine the shear strain at Q' associated with the two edges (PQ and QR). Assume a = 150 mm, b = 216 mm, c = 180 mm, and A = 0.9 mm. a b 가 P R C Q 10' Answer: Shear strain y = i A X prad.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
