Set P1 = 300 lb, P2 = 750 lb. Determine the force in member AB, AC, & BC of the truss. State whether they're in tension

Post by answerhappygod »

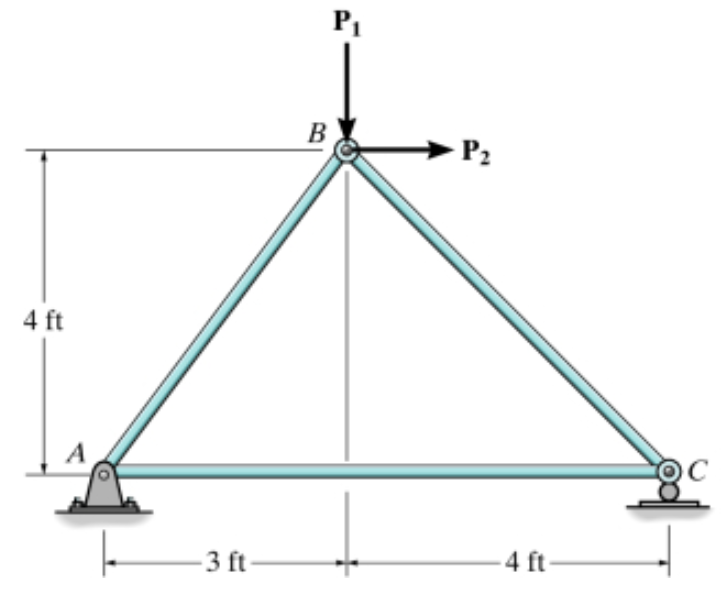

Set P1 = 300 lb, P2 = 750 lb.
Set P1 300 Lb P2 750 Lb Determine The Force In Member Ab Ac Bc Of The Truss State Whether They Re In Tension 1
Set P1 300 Lb P2 750 Lb Determine The Force In Member Ab Ac Bc Of The Truss State Whether They Re In Tension 1 (85.17 KiB) Viewed 31 times
Determine the force in member AB, AC, & BC of thetruss. State whether they're in tension or compression. Show allnecessary free body diagrams.
4 ft -3 ft B P₁ P₂ -4 ft-
