A pipe with an outside diameter of 7.0 in. and a wall thickness of 0.250 in. is subjected to the loads shown in the figu

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A pipe with an outside diameter of 7.0 in. and a wall thickness of 0.250 in. is subjected to the loads shown in the figu

Post by answerhappygod »

A Pipe With An Outside Diameter Of 7 0 In And A Wall Thickness Of 0 250 In Is Subjected To The Loads Shown In The Figu 1
A Pipe With An Outside Diameter Of 7 0 In And A Wall Thickness Of 0 250 In Is Subjected To The Loads Shown In The Figu 1 (15.4 KiB) Viewed 44 times
A Pipe With An Outside Diameter Of 7 0 In And A Wall Thickness Of 0 250 In Is Subjected To The Loads Shown In The Figu 2
A Pipe With An Outside Diameter Of 7 0 In And A Wall Thickness Of 0 250 In Is Subjected To The Loads Shown In The Figu 2 (21.88 KiB) Viewed 44 times
A Pipe With An Outside Diameter Of 7 0 In And A Wall Thickness Of 0 250 In Is Subjected To The Loads Shown In The Figu 3
A Pipe With An Outside Diameter Of 7 0 In And A Wall Thickness Of 0 250 In Is Subjected To The Loads Shown In The Figu 3 (21.41 KiB) Viewed 44 times
A Pipe With An Outside Diameter Of 7 0 In And A Wall Thickness Of 0 250 In Is Subjected To The Loads Shown In The Figu 4
A Pipe With An Outside Diameter Of 7 0 In And A Wall Thickness Of 0 250 In Is Subjected To The Loads Shown In The Figu 4 (22.34 KiB) Viewed 44 times
A Pipe With An Outside Diameter Of 7 0 In And A Wall Thickness Of 0 250 In Is Subjected To The Loads Shown In The Figu 5
A Pipe With An Outside Diameter Of 7 0 In And A Wall Thickness Of 0 250 In Is Subjected To The Loads Shown In The Figu 5 (13.29 KiB) Viewed 44 times
A pipe with an outside diameter of 7.0 in. and a wall thickness of 0.250 in. is subjected to the loads shown in the figure. The pipe contains fluid at a pressure of 150 psi. For this analysis, use the following values:

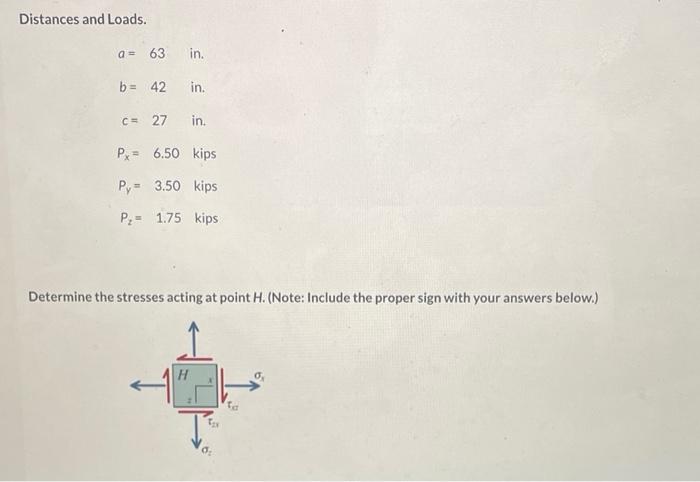

Distances and Loads. a = 63 in. b= 42 in. c = 27 in. Px= 6.50 kips Py = 3.50 kips P₂= 1.75 kips Determine the stresses acting at point H. (Note: Include the proper sign with your answers below.) H

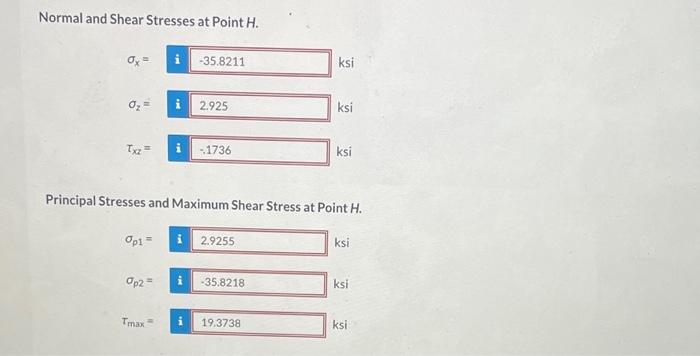

Normal and Shear Stresses at Point H. Txz Op1 = %p2= -35.8211 Tmax= 2.925 -1736 Principal Stresses and Maximum Shear Stress at Point H. i 2.9255 i -35.8218 ksi 19.3738 ksi ksi ksi ksi ksi

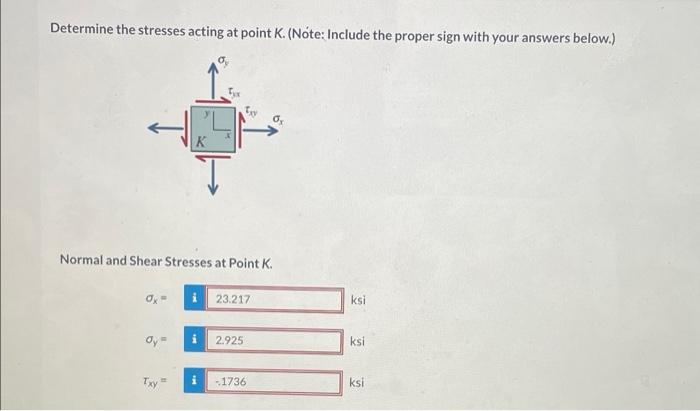

Determine the stresses acting at point K. (Note: Include the proper sign with your answers below.) Normal and Shear Stresses at Point K. ax Oy= K Ţ Txy" i 23.217 2.925 i -1736 6₂ ksi ksi ksi

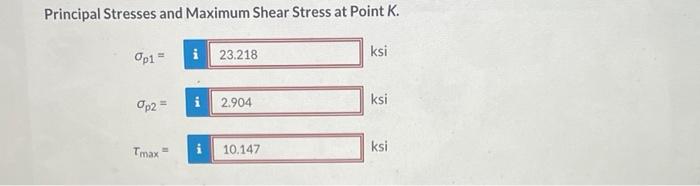

Principal Stresses and Maximum Shear Stress at Point K. Op1 = Op2 = Tmax= i i 23.218 2.904 10.147 ksi ksi ksi
