Q.2) Determine the maximum allowable centric load for the column shown below. The column has an effective length of 8 m

Post by answerhappygod »

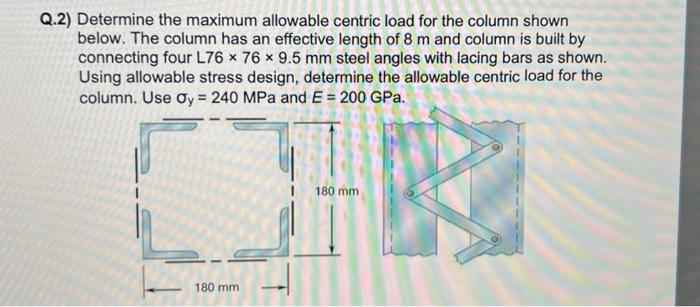

Q 2 Determine The Maximum Allowable Centric Load For The Column Shown Below The Column Has An Effective Length Of 8 M 1
Q 2 Determine The Maximum Allowable Centric Load For The Column Shown Below The Column Has An Effective Length Of 8 M 1 (38.93 KiB) Viewed 37 times
Q.2) Determine the maximum allowable centric load for the column shown below. The column has an effective length of 8 m and column is built by connecting four L76 x 76 x 9.5 mm steel angles with lacing bars as shown. Using allowable stress design, determine the allowable centric load for the column. Use Oy = 240 MPa and E = 200 GPa. 180 mm 180 mm
