A simply-supported beam is subjected to a coupled moment C = 360 ft-lb and the forces F₁ = 560 lb and F₂ = 740 lb. The d

[answerhappygod]

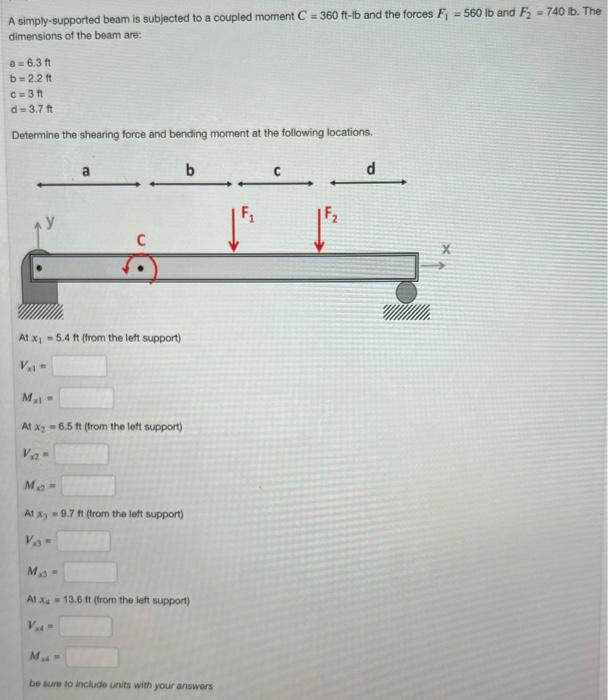

A Simply Supported Beam Is Subjected To A Coupled Moment C 360 Ft Lb And The Forces F 560 Lb And F 740 Lb The D 1 (44.91 KiB) Viewed 57 times

A simply-supported beam is subjected to a coupled moment C = 360 ft-lb and the forces F₁ = 560 lb and F₂ = 740 lb. The dimensions of the beam are: a=6.3 ft b=2.2 ft c=3 ft d=3.7 ft Determine the shearing force and bending moment at the following locations. a C At x = 5.4 ft (from the left support) V₁₁- Mat At x₂-6.5 ft (from the left support) V₂- M₁- M₂= At xy = 9.7 ft (from the left support) V₁- b At x 13.6 ft (from the left support) V₁A= M₁4- be sure to include units with your answers F₁ |F₂ d
