Homework H19.B Given: A belt is wrapped around a drum, with a couple M being applied to the drum. The belt is being tens

Post by answerhappygod »

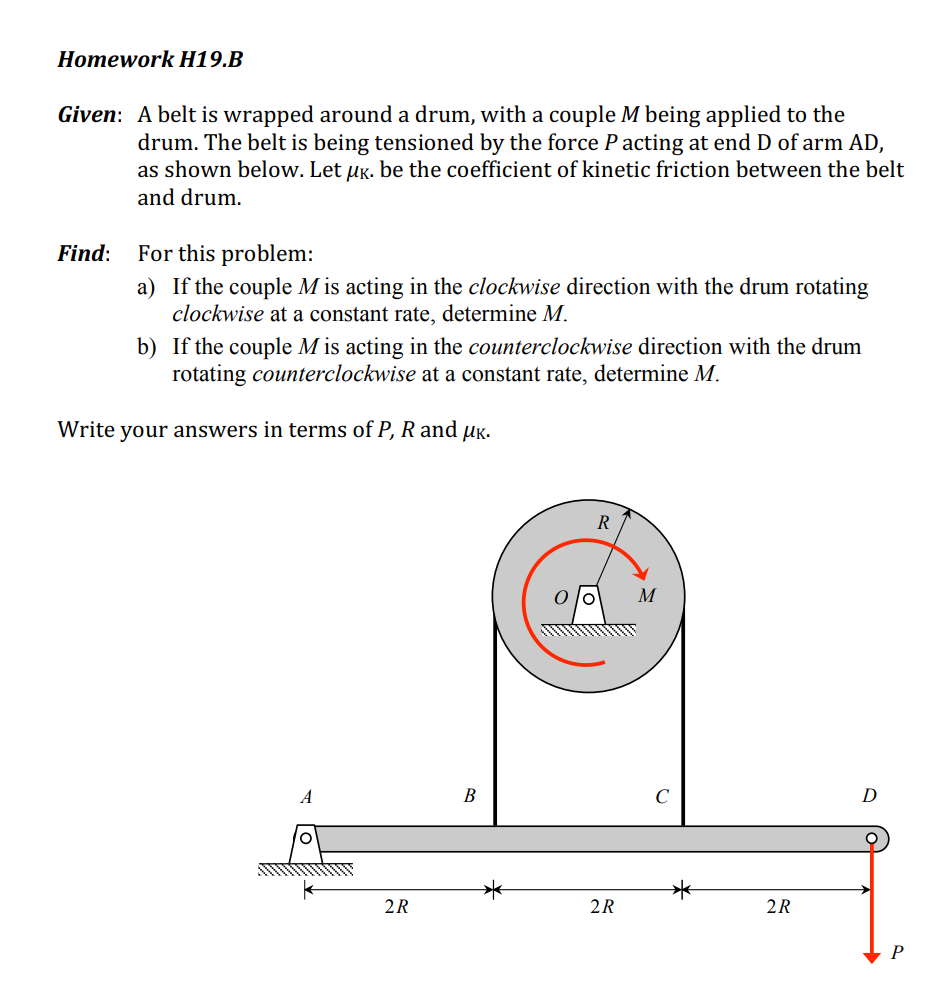

Homework H19 B Given A Belt Is Wrapped Around A Drum With A Couple M Being Applied To The Drum The Belt Is Being Tens 1
Homework H19 B Given A Belt Is Wrapped Around A Drum With A Couple M Being Applied To The Drum The Belt Is Being Tens 1 (134.16 KiB) Viewed 52 times
Homework H19.B Given: A belt is wrapped around a drum, with a couple M being applied to the drum. The belt is being tensioned by the force P acting at end D of arm AD, as shown below. Let uk. be the coefficient of kinetic friction between the belt and drum. Find: For this problem: a) If the couple M is acting in the clockwise direction with the drum rotating clockwise at a constant rate, determine M. b) If the couple M is acting in the counterclockwise direction with the drum rotating counterclockwise at a constant rate, determine M. Write your answers in terms of P, R and µK. A O 2R B R 2R M 2R D P
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
