Homework H19.A Given: Blocks A and B, each having a weight of W, are supported by the cable/fixed- drum system shown bel

[answerhappygod]

Homework H19 A Given Blocks A And B Each Having A Weight Of W Are Supported By The Cable Fixed Drum System Shown Bel 1 (122.66 KiB) Viewed 65 times

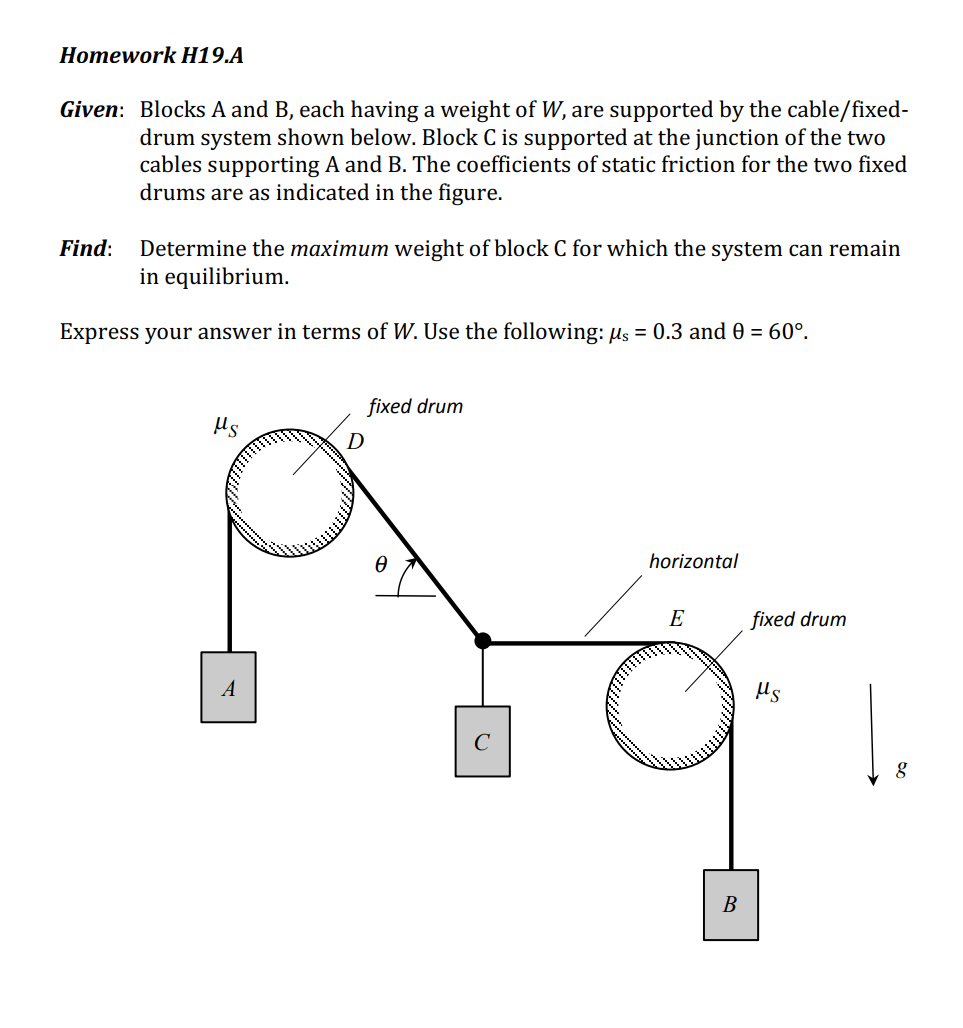

Homework H19.A Given: Blocks A and B, each having a weight of W, are supported by the cable/fixed- drum system shown below. Block C is supported at the junction of the two cables supporting A and B. The coefficients of static friction for the two fixed drums are as indicated in the figure. Find: Determine the maximum weight of block C for which the system can remain in equilibrium. Express your answer in terms of W. Use the following: µs = 0.3 and 0 = 60°. Hs A fixed drum 0 horizontal E a B fixed drum Hs g
