For the cast iron bar shown in the figure, determine the principal stresses and the maximum shear stress at point H. D=6

Post by answerhappygod »

For the cast iron bar shown in the figure, determine theprincipal stresses and themaximum shear stress at point H. D=60mm
For The Cast Iron Bar Shown In The Figure Determine The Principal Stresses And The Maximum Shear Stress At Point H D 6 1

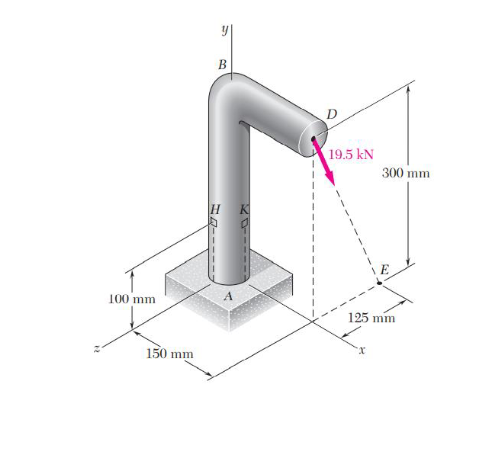

For The Cast Iron Bar Shown In The Figure Determine The Principal Stresses And The Maximum Shear Stress At Point H D 6 1 (62.33 KiB) Viewed 46 times
100 mm 150 mm y B A D 19.5 kN 300 mm 125 mm
