Using the force method, calculate the bending moment at 𝐵B for the statically indeterminate frame below. Please ignore t

[answerhappygod]

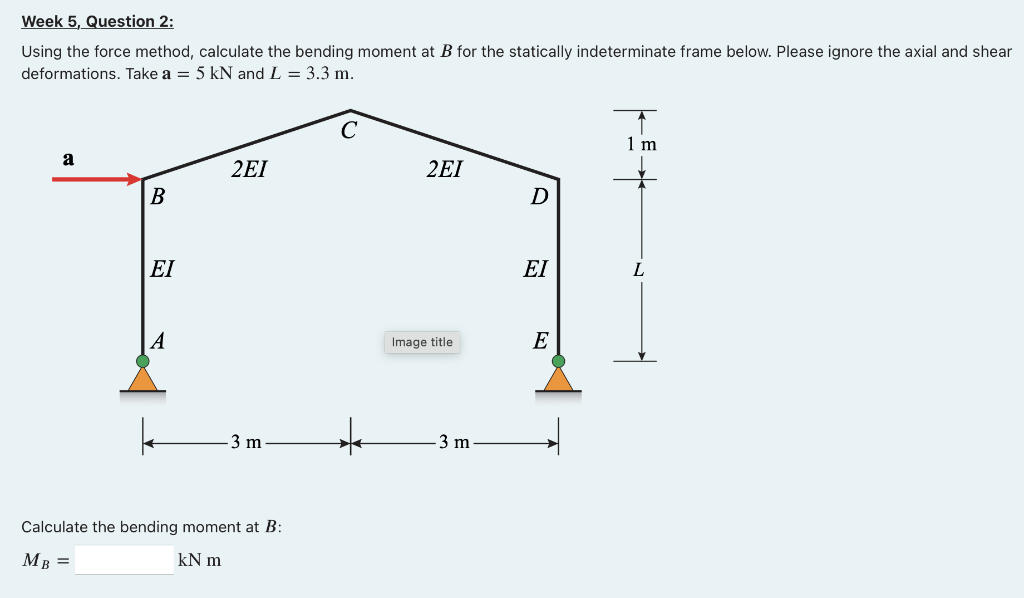

Using the force method, calculate the bending momentat 𝐵B for the statically indeterminate frame below.Please ignore the axial and shear deformations.Take 𝐚=5 kNa=5 kN and 𝐿=3.3 mL=3.3 m.

Using The Force Method Calculate The Bending Moment At Bb For The Statically Indeterminate Frame Below Please Ignore T 1 (54.38 KiB) Viewed 55 times

Week 5, Question 2: Using the force method, calculate the bending moment at B for the statically indeterminate frame below. Please ignore the axial and shear deformations. Take a = 5 kN and L = 3.3 m. a B EI 2EI 3 m Calculate the bending moment at B: MB = kN m 2EI Image title 3 m D ΕΙ E ↑ 1 m L
