A pair of helical gears on parallel axes, similar to those in Q3, have involute teeth of 14.5° normal pressure angle, an

Post by answerhappygod »

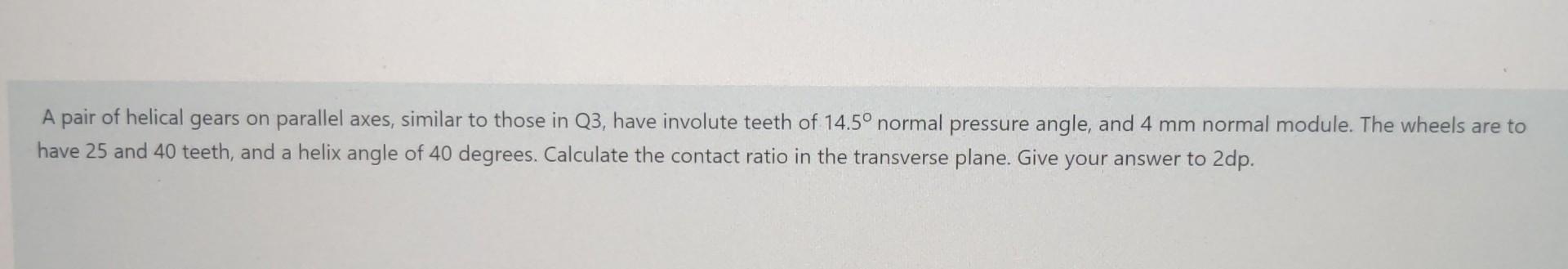

A Pair Of Helical Gears On Parallel Axes Similar To Those In Q3 Have Involute Teeth Of 14 5 Normal Pressure Angle An 1
A Pair Of Helical Gears On Parallel Axes Similar To Those In Q3 Have Involute Teeth Of 14 5 Normal Pressure Angle An 1 (40.69 KiB) Viewed 32 times
A pair of helical gears on parallel axes, similar to those in Q3, have involute teeth of 14.5° normal pressure angle, and 4 mm normal module. The wheels are to have 25 and 40 teeth, and a helix angle of 40 degrees. Calculate the contact ratio in the transverse plane. Give your answer to 2dp.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
