= R10-5. The 60° strain rosette is mounted on a beam. The following readings are obtained for each gage: €a = 600(10), €

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

= R10-5. The 60° strain rosette is mounted on a beam. The following readings are obtained for each gage: €a = 600(10), €

Post by answerhappygod »

R10 5 The 60 Strain Rosette Is Mounted On A Beam The Following Readings Are Obtained For Each Gage A 600 10 1
R10 5 The 60 Strain Rosette Is Mounted On A Beam The Following Readings Are Obtained For Each Gage A 600 10 1 (151.05 KiB) Viewed 39 times

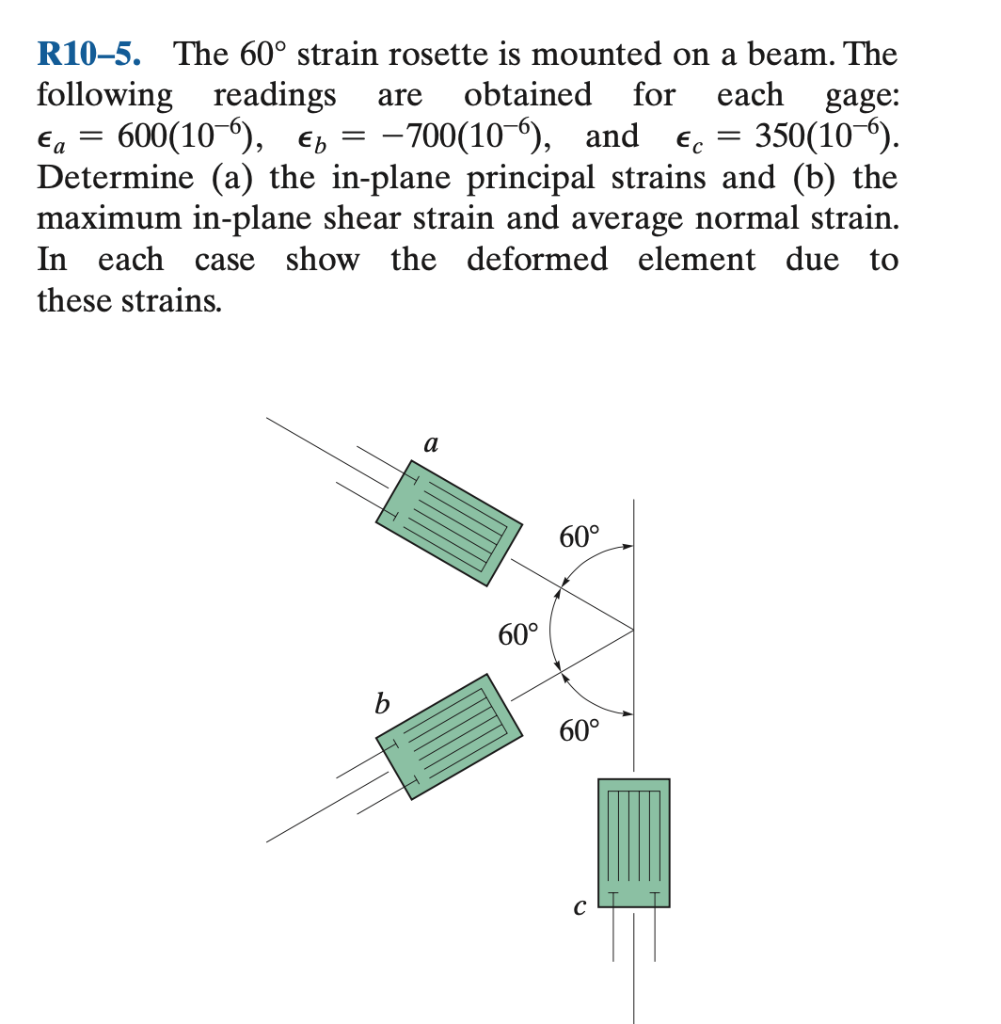

= R10-5. The 60° strain rosette is mounted on a beam. The following readings are obtained for each gage: €a = 600(10), € = -700(10), and € 350(10¯). Determine (a) the in-plane principal strains and (b) the maximum in-plane shear strain and average normal strain. In each case show the deformed element due to these strains. b a 60° 60° 60°
