A stress element in the x-y plane is assumed to be acting under plane stress conditions. The in-plane stresses are 3030M

[answerhappygod]

A Stress Element In The X Y Plane Is Assumed To Be Acting Under Plane Stress Conditions The In Plane Stresses Are 3030m 1 (38.75 KiB) Viewed 32 times

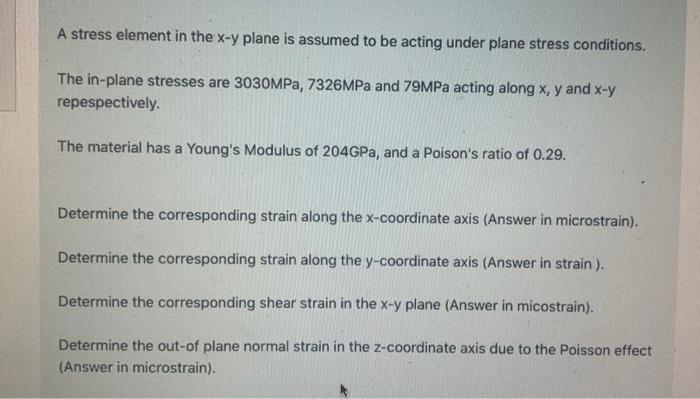

A stress element in the x-y plane is assumed to be acting under plane stress conditions. The in-plane stresses are 3030MPa, 7326MPa and 79MPa acting along x, y and x-y repespectively. The material has a Young's Modulus of 204GPa, and a Poison's ratio of 0.29. Determine the corresponding strain along the x-coordinate axis (Answer in microstrain). Determine the corresponding strain along the y-coordinate axis (Answer in strain). Determine the corresponding shear strain in the x-y plane (Answer in micostrain). Determine the out-of plane normal strain in the z-coordinate axis due to the Poisson effect (Answer in microstrain).
