A stress element in the x-y plane is assumed to be acting under plane strain conditions. The in-plane microstrains are 9

[answerhappygod]

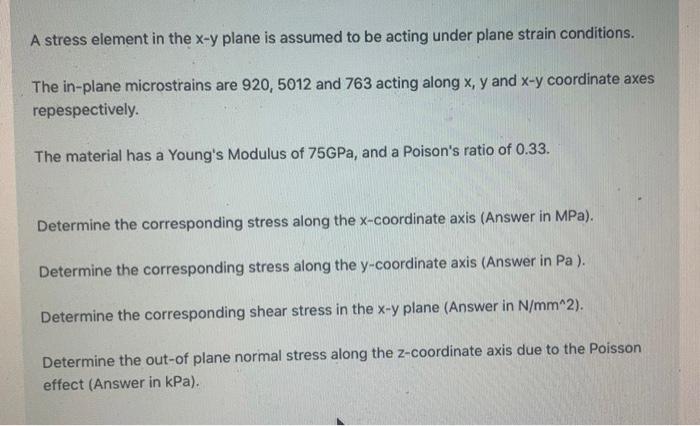

A Stress Element In The X Y Plane Is Assumed To Be Acting Under Plane Strain Conditions The In Plane Microstrains Are 9 1 (43.31 KiB) Viewed 60 times

A stress element in the x-y plane is assumed to be acting under plane strain conditions. The in-plane microstrains are 920, 5012 and 763 acting along x, y and x-y coordinate axes repespectively. The material has a Young's Modulus of 75GPa, and a Poison's ratio of 0.33. Determine the corresponding stress along the x-coordinate axis (Answer in MPa). Determine the corresponding stress along the y-coordinate axis (Answer in Pa ). Determine the corresponding shear stress in the x-y plane (Answer in N/mm^2). Determine the out-of plane normal stress along the z-coordinate axis due to the Poisson effect (Answer in kPa).
