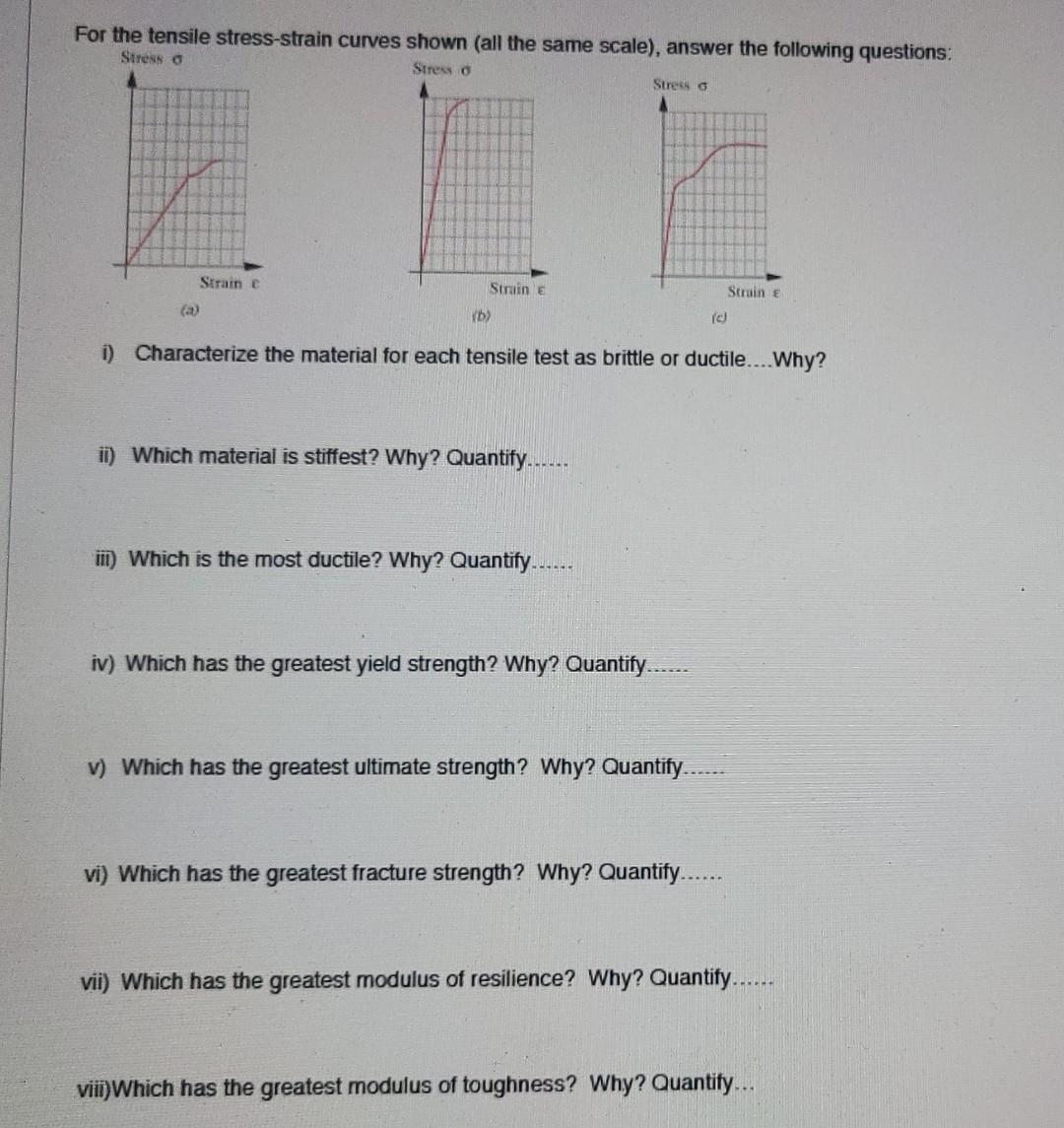

- For The Tensile Stress Strain Curves Shown All The Same Scale Answer The Following Questions Stress O Stress O A S 1 (138.98 KiB) Viewed 36 times
For the tensile stress-strain curves shown (all the same scale), answer the following questions: Stress o Stress o (a) Strain e Strain e (b) Which terial is stiffest? Why? Quantify...... Stress G iii) Which is the most ductile? Why? Quantify... i) Characterize the material for each tensile test as brittle or ductile....Why? iv) Which has the greatest yield strength? Why? Quantify... v) Which has the greatest ultimate strength? Why? Quantify.. Strain e (c) vi) Which has the greatest fracture strength? Why? Quantify...... vii) Which has the greatest modulus of resilience? Why? Quantify... viii) Which has the greatest modulus of toughness? Why? Quantify...
