When the mechanism is released from rest in the position where = 60°, the 4-kg carriage drops and the 6-kg sphere rises.

Post by answerhappygod »

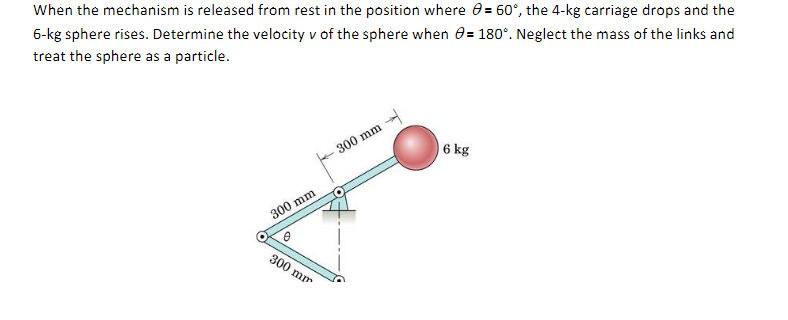

When The Mechanism Is Released From Rest In The Position Where 60 The 4 Kg Carriage Drops And The 6 Kg Sphere Rises 1
When The Mechanism Is Released From Rest In The Position Where 60 The 4 Kg Carriage Drops And The 6 Kg Sphere Rises 1 (42.79 KiB) Viewed 34 times
When the mechanism is released from rest in the position where = 60°, the 4-kg carriage drops and the 6-kg sphere rises. Determine the velocity v of the sphere when = 180°. Neglect the mass of the links and treat the sphere as a particle. 300 mm 300 mm 300 mm 6 kg
