- 30 T Strut 45 Hinge 225 Kg Structure Shown Is In Equilibrium A Mass Of 225 Kg Hangs From The End Of A 45kg Uniform St 1 (162.88 KiB) Viewed 39 times
30⁰ T Strut 45° Hinge 225 kg Structure shown is in equilibrium. A mass of 225 kg hangs from the end of a 45kg uniform st
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
30⁰ T Strut 45° Hinge 225 kg Structure shown is in equilibrium. A mass of 225 kg hangs from the end of a 45kg uniform st

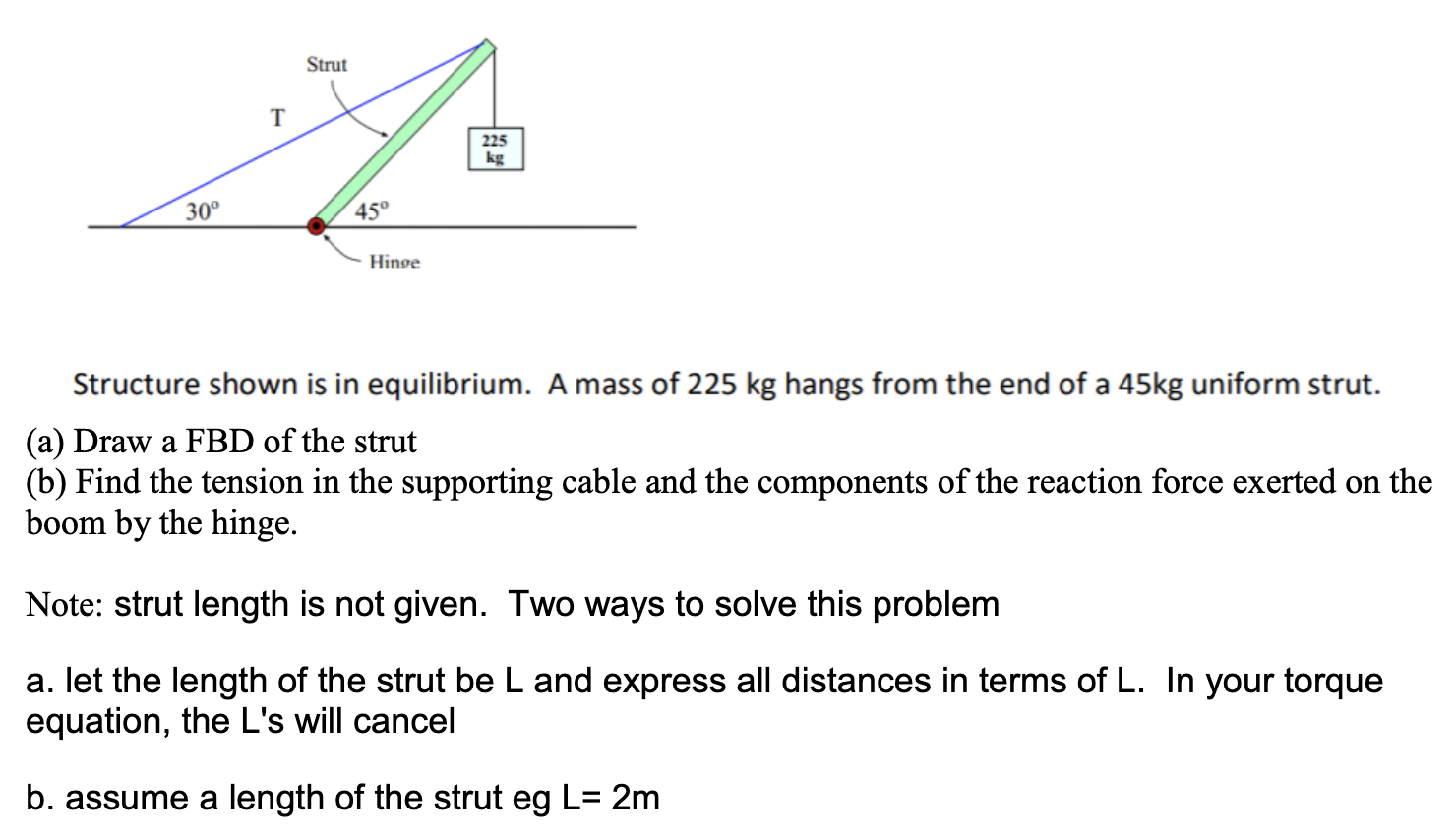

30⁰ T Strut 45° Hinge 225 kg Structure shown is in equilibrium. A mass of 225 kg hangs from the end of a 45kg uniform strut. (a) Draw a FBD of the strut (b) Find the tension in the supporting cable and the components of the reaction force exerted on the boom by the hinge. Note: strut length is not given. Two ways to solve this problem a. let the length of the strut be L and express all distances in terms of L. In your torque equation, the L's will cancel b. assume a length of the strut eg L= 2m
