A truss joint shown consists of a bottom chord C made up of two angles, and web members A and B each carrying the given

Post by answerhappygod »

A Truss Joint Shown Consists Of A Bottom Chord C Made Up Of Two Angles And Web Members A And B Each Carrying The Given 1
A Truss Joint Shown Consists Of A Bottom Chord C Made Up Of Two Angles And Web Members A And B Each Carrying The Given 1 (40.92 KiB) Viewed 43 times

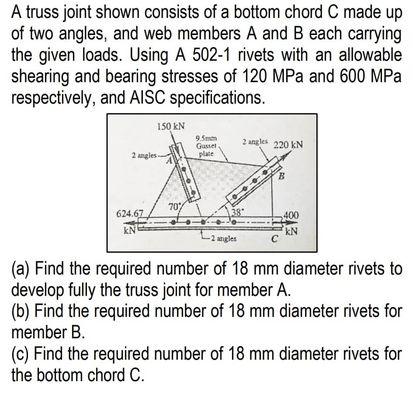

A truss joint shown consists of a bottom chord C made up of two angles, and web members A and B each carrying the given loads. Using A 502-1 rivets with an allowable shearing and bearing stresses of 120 MPa and 600 MPa respectively, and AISC specifications. 150 kN 2 angles. 624.67 kNE 70% 9.5mm Gassel plate 2 angles 2 angles 220 kN 400 kN (a) Find the required number of 18 mm diameter rivets to develop fully the truss joint for member A. (b) Find the required number of 18 mm diameter rivets for member B. (c) Find the required number of 18 mm diameter rivets for the bottom chord C.
