Given the RLC circuit shown in Figure Q1(a) is connected in series to a 90 V (rms) 50 Hz source and rms current of 0.57

[answerhappygod]

Given The Rlc Circuit Shown In Figure Q1 A Is Connected In Series To A 90 V Rms 50 Hz Source And Rms Current Of 0 57 1 (36.56 KiB) Viewed 56 times

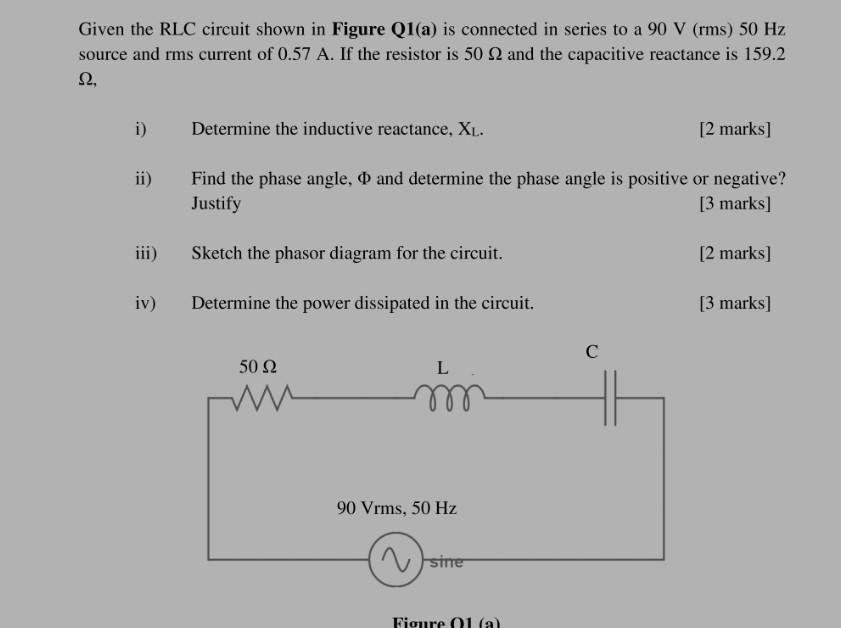

Given the RLC circuit shown in Figure Q1(a) is connected in series to a 90 V (rms) 50 Hz source and rms current of 0.57 A. If the resistor is 50 22 and the capacitive reactance is 159.2 Ω, i) ii) iii) iv) [2 marks] Find the phase angle, and determine the phase angle is positive or negative? Justify [3 marks] Sketch the phasor diagram for the circuit. Determine the power dissipated in the circuit. Determine the inductive reactance, XL. 50 Ω L 90 Vrms, 50 Hz sine Figure 01 (a) C [2 marks] [3 marks]
