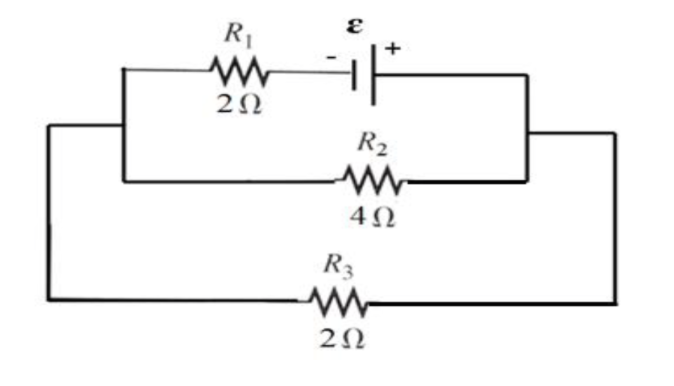

In the circuit below, R₁ = 2 Ω, R₂ = 4 Ω, and R₃ = 2 Ω,
a) What is the value of the f.e.m. ideal ε which would provide6W power at R₃?
b) What is the power dissipated as heat in R₁ and R₂?
- 1 (50.89 KiB) Viewed 39 times
E1 In the circuit below, R₁ = 2 Ω, R₂ = 4 Ω, and R₃ = 2 Ω, a) What is the value of the f.e.m. ideal ε which would provid
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
E1 In the circuit below, R₁ = 2 Ω, R₂ = 4 Ω, and R₃ = 2 Ω, a) What is the value of the f.e.m. ideal ε which would provid
E1
In the circuit below, R₁ = 2 Ω, R₂ = 4 Ω, and R₃ = 2 Ω,
a) What is the value of the f.e.m. ideal ε which would provide6W power at R₃?
b) What is the power dissipated as heat in R₁ and R₂?
R₁ ΖΩ Μ € Μ R₂ 4Ω R3 ΖΩ
In the circuit below, R₁ = 2 Ω, R₂ = 4 Ω, and R₃ = 2 Ω,
a) What is the value of the f.e.m. ideal ε which would provide6W power at R₃?
b) What is the power dissipated as heat in R₁ and R₂?
R₁ ΖΩ Μ € Μ R₂ 4Ω R3 ΖΩ
