The switch in the circuit shown in the figure has peen open for a long time. The resistors in the circuit each have a va

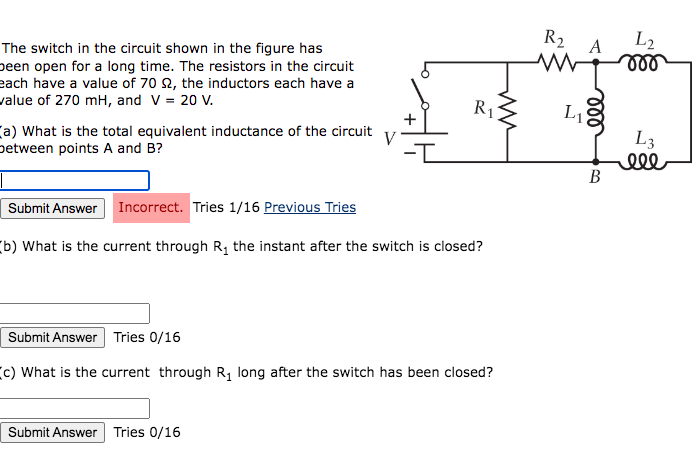

The switch in the circuit shown in the figure has peen open for a long time. The resistors in the circuit each have a value of 70 92, the inductors each have a value of 270 mH, and V = 20 V. (a) What is the total equivalent inductance of the circuit between points A and B? + R₁ Submit Answer Incorrect. Tries 1/16 Previous Tries (b) What is the current through R₁ the instant after the switch is closed? Submit Answer Tries 0/16 Submit Answer Tries 0/16 (c) What is the current through R₁ long after the switch has been closed? ww R₂ L2 A www vor L₁ ele B L3 ele
