Consider The Electric Circuit Shown In The Figure The Voltage Of The Battery Is V 10 8 V And The Resistors Have The 1 (39.46 KiB) Viewed 54 times
What is the electric current flowing through resistorR2?
What is the rate of heat production by resistorR2?

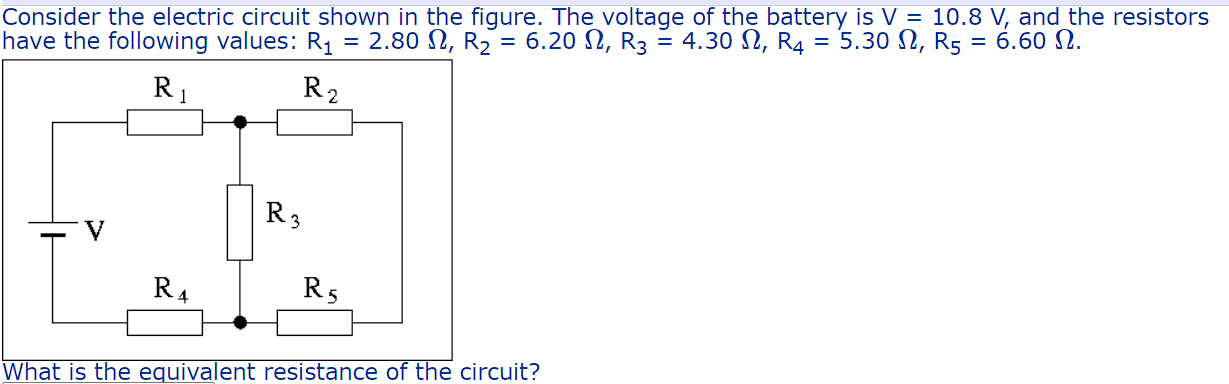

Consider the electric circuit shown in the figure. The voltage of the battery is V = 10.8 V, and the resistors have the following values: R₁ = 2.80 2, R₂ = 6.20, R3 = 4.30, R4 = 5.30 M, R5 = 6.60 M. R₁ R 2 R4 R 3 R5 What is the equivalent resistance of the circuit?
