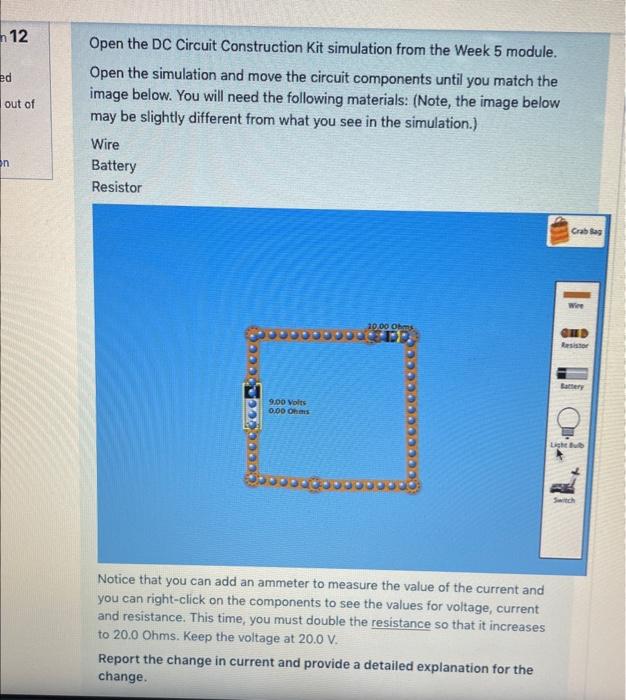

12 ed out of on Open the DC Circuit Construction Kit simulation from the Week 5 module. Open the simulation and move the circuit components until you match the image below. You will need the following materials: (Note, the image below may be slightly different from what you see in the simulation.) Wire Battery Resistor 9.00 Volts 0.00 Ohms 30.00 Ohms 5459 Notice that you can add an ammeter to measure the value of the current and you can right-click on the components to see the values for voltage, current and resistance. This time, you must double the resistance so that it increases to 20.0 Ohms. Keep the voltage at 20.0 V. Report the change in current and provide a detailed explanation for the change. Crab Sag Wire QUD Resistor Battery Light Bulb
