(11%) Problem 3: Oil with a density of 842 kg/m³ is flowing smoothly through a pipe, as shown. In the lower portion, the

[answerhappygod]

11 Problem 3 Oil With A Density Of 842 Kg M Is Flowing Smoothly Through A Pipe As Shown In The Lower Portion The 1 (40.51 KiB) Viewed 59 times

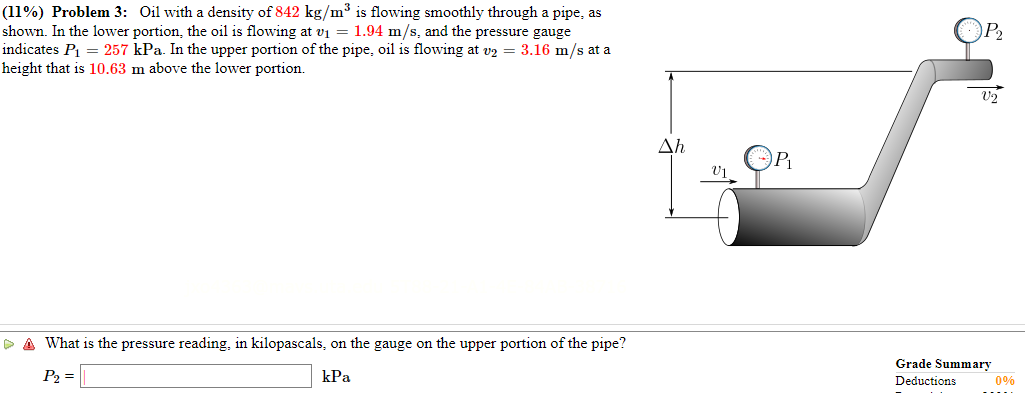

(11%) Problem 3: Oil with a density of 842 kg/m³ is flowing smoothly through a pipe, as shown. In the lower portion, the oil is flowing at v₁ = 1.94 m/s, and the pressure gauge indicates P₁ = 257 kPa. In the upper portion of the pipe, oil is flowing at v2 = 3.16 m/s at a height that is 10.63 m above the lower portion. ▷ A What is the pressure reading, in kilopascals, on the gauge on the upper portion of the pipe? P₂ = kPa Ah OP P₂ V2 Grade Summary Deductions 0%
