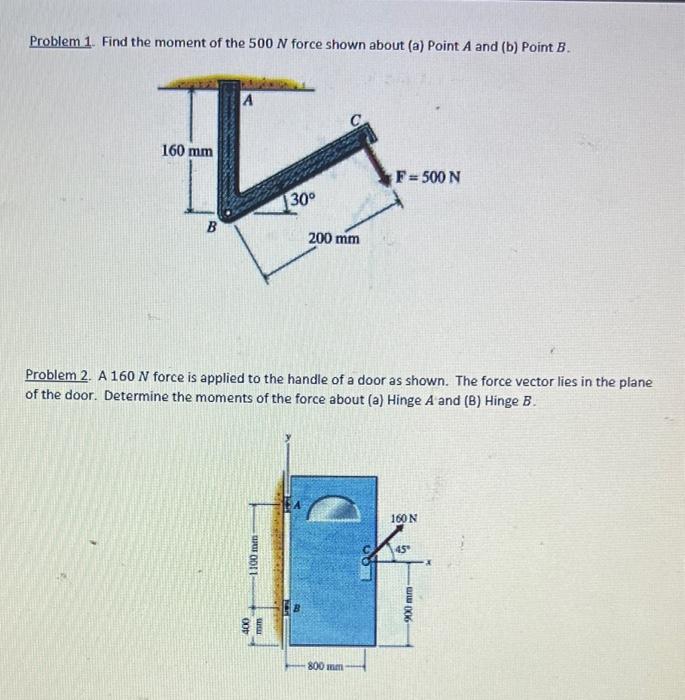

Problem 1. Find the moment of the 500 N force shown about (a) Point A and (b) Point B. A I 160 mm 30⁰ B 1100 mm Problem

[answerhappygod]

Problem 1 Find The Moment Of The 500 N Force Shown About A Point A And B Point B A I 160 Mm 30 B 1100 Mm Problem 1 (68.36 KiB) Viewed 42 times

Problem 1. Find the moment of the 500 N force shown about (a) Point A and (b) Point B. A I 160 mm 30⁰ B 1100 mm Problem 2. A 160 N force is applied to the handle of a door as shown. The force vector lies in the plane of the door. Determine the moments of the force about (a) Hinge A and (B) Hinge B. 400 200 mm www F=500 N 800 mm 160 N 45° 900 mm-
