In your circuit toolbox you have only some 10 2 resistors and switches, which can be open or closed. Construct a circuit

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

In your circuit toolbox you have only some 10 2 resistors and switches, which can be open or closed. Construct a circuit

Post by answerhappygod »

In Your Circuit Toolbox You Have Only Some 10 2 Resistors And Switches Which Can Be Open Or Closed Construct A Circuit 1
In Your Circuit Toolbox You Have Only Some 10 2 Resistors And Switches Which Can Be Open Or Closed Construct A Circuit 1 (30.31 KiB) Viewed 30 times

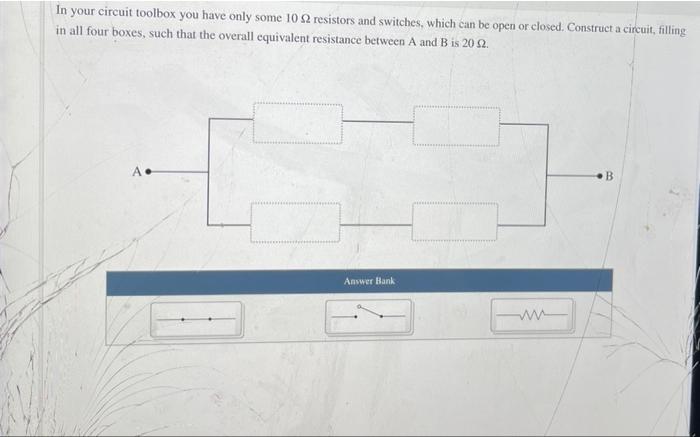

In your circuit toolbox you have only some 10 2 resistors and switches, which can be open or closed. Construct a circuit, filling in all four boxes, such that the overall equivalent resistance between A and B is 20 £2. Answer Bank ww B
