(f) Examine the circuit in Fig. 1.f and answer the following questions. i) Find the reactances XL and Xc as well as the

[answerhappygod]

F Examine The Circuit In Fig 1 F And Answer The Following Questions I Find The Reactances Xl And Xc As Well As The 1 (26.3 KiB) Viewed 53 times

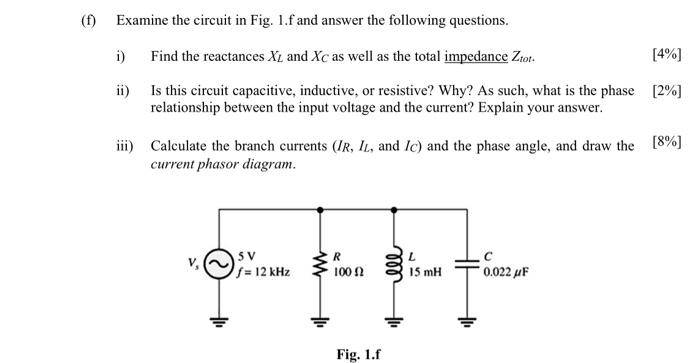

(f) Examine the circuit in Fig. 1.f and answer the following questions. i) Find the reactances XL and Xc as well as the total impedance Ztot. ii) Is this circuit capacitive, inductive, or resistive? Why? As such, what is the phase relationship between the input voltage and the current? Explain your answer. iii) Calculate the branch currents (IR, IL, and Ic) and the phase angle, and draw the [8%] current phasor diagram. SV R L time for the fina f= 12 kHz 100 (2 15 mH 0.022 μF [4%] [2%] Fig. 1.f
