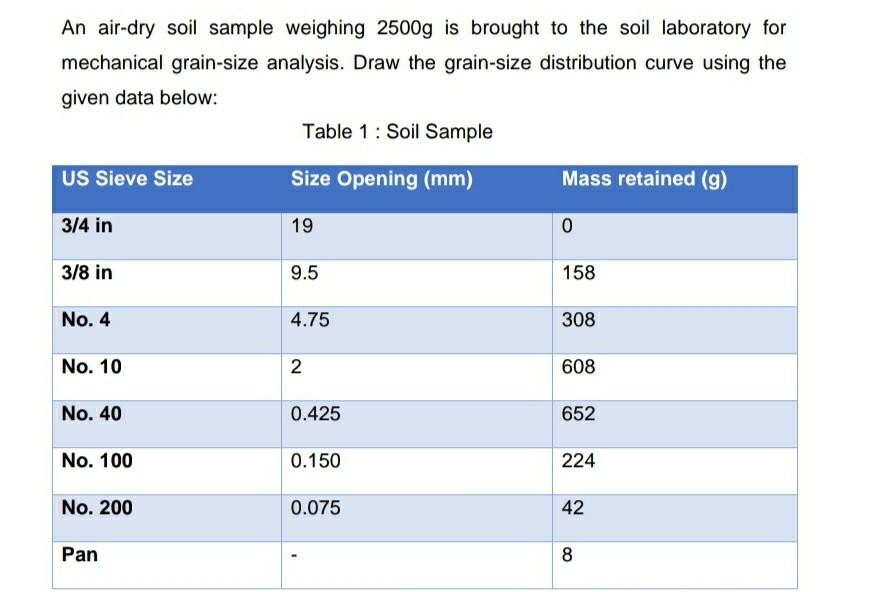

An air-dry soil sample weighing 2500g is brought to the soil laboratory for mechanical grain-size analysis. Draw the grain-size distribution curve using the given data below: Table 1 : Soil Sample US Sieve Size Size Opening (mm) Mass retained (g) 3/4 in 19 0 3/8 in 9.5 158 No. 4 4.75 308 No. 10 2 608 No. 40 0.425 652 No. 100 0.150 224 No. 200 0.075 42 Pan 8
