hei please help for structural analysis

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

hei please help for structural analysis

Post by answerhappygod »

Hei Please Help For Structural Analysis 1
Hei Please Help For Structural Analysis 1 (22.23 KiB) Viewed 18 times
hei please help for structural analysis

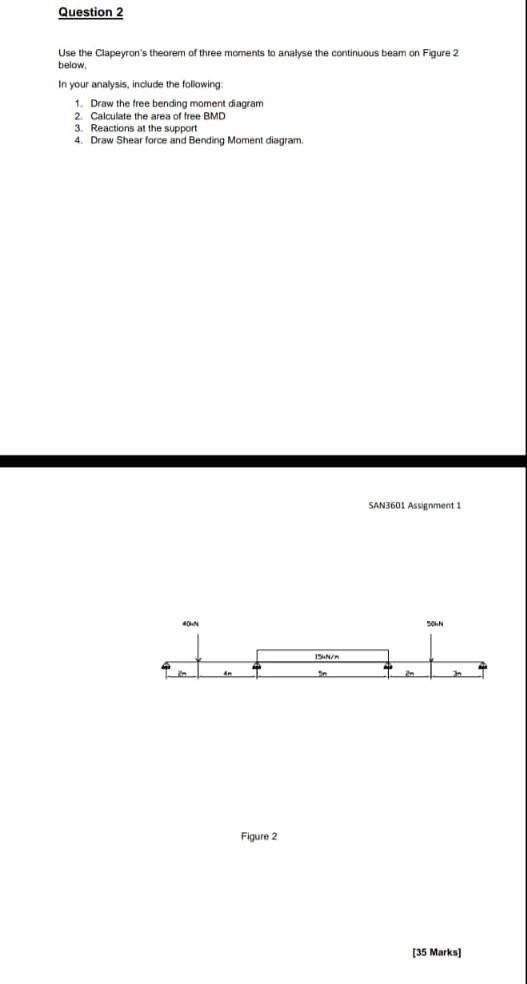

Question 2 Use the Clapeyron's theorem below, three moments to analyse the continuous beam on Figure 2 In your analysis, include the following 1. Draw the free bending moment diagram 2. Calculate the area of free BMD 3. Reactions at the support 4. Draw Shear force and Bending Moment diagram SAN3601 Assignment 1 SON LES GI 15.N/A Figure 2 [35 Marks)
