Part II 6. During the lab session, you will design a sequential circuit. Your labTA will provide you with the flip-flop

[answerhappygod]

Part Ii 6 During The Lab Session You Will Design A Sequential Circuit Your Labta Will Provide You With The Flip Flop 1 (364.19 KiB) Viewed 24 times

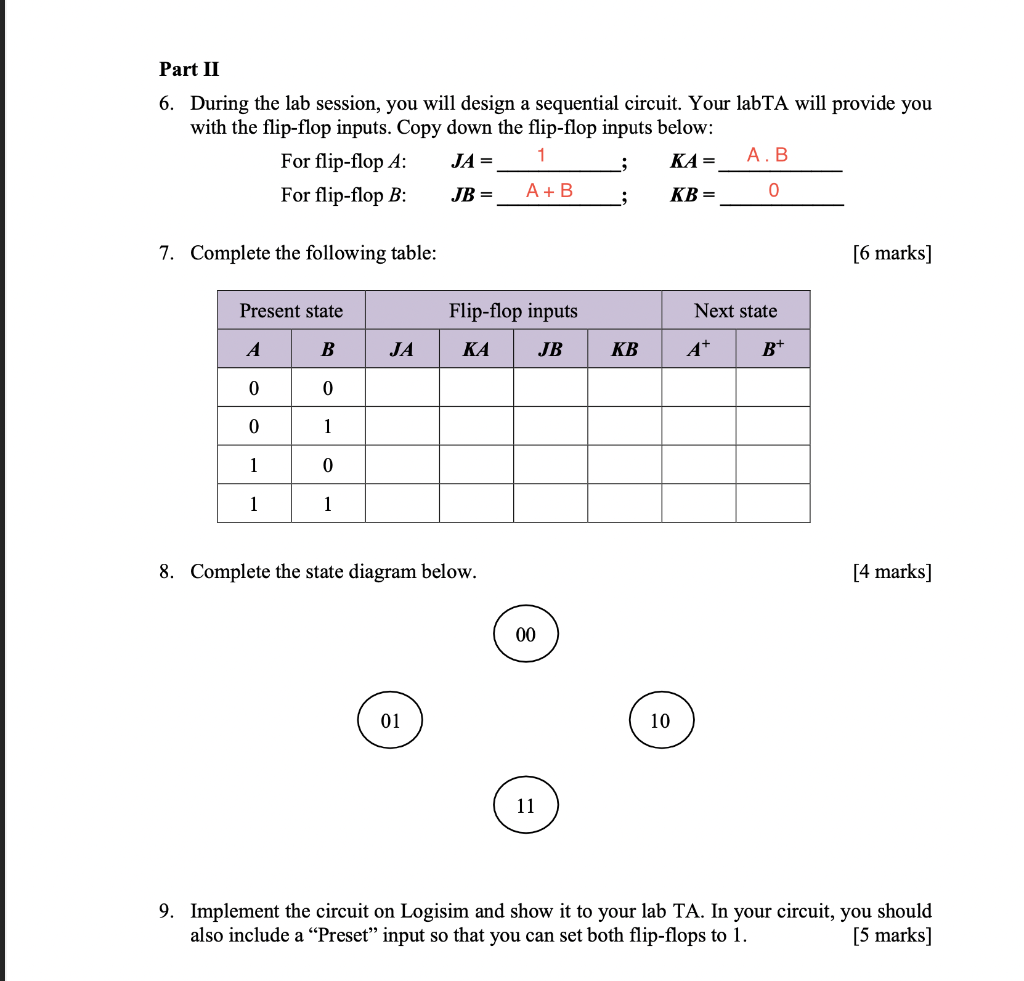

Part II 6. During the lab session, you will design a sequential circuit. Your labTA will provide you with the flip-flop inputs. Copy down the flip-flop inputs below: For flip-flop A: JA = 3 KA= A.B For flip-flop B: JB = A + B ; KB= 0 7. Complete the following table: [6 marks] Present state Flip-flop inputs Next state A B JA KA JB KB At B+ 0 0 0 1 1 0 1 1 8. Complete the state diagram below. [4 marks] 00 01 10 11 9. Implement the circuit on Logisim and show it to your lab TA. In your circuit, you should also include a “Preset” input so that you can set both flip-flops to 1. [5 marks] a
