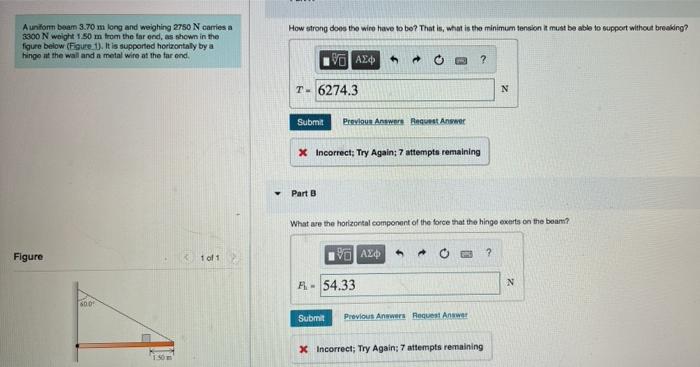

A uniform beam 3.70 m long and weighing 2750 N carries a 3300 N weight 1.50 m from the far end, as shown in the figure below (Figure 1). It is supported horizontally by a hinge at the wall and a metal wire at the far end. Figure 60.01 150m 1 of 1 How strong does the wire have to be? That is, what is the minimum tension it must be able to support without breaking? T-6274.3 195] ΑΣΦ Submit Previous Answers Request Answer X Incorrect; Try Again; 7 attempts remaining Part B VE ΑΣΦ A-54.33 Submit What are the horizontal component of the force that the hinge exerts on the beam? ? Previous Answers Request Answer x Incorrect; Try Again; 7 attempts remaining N ? N

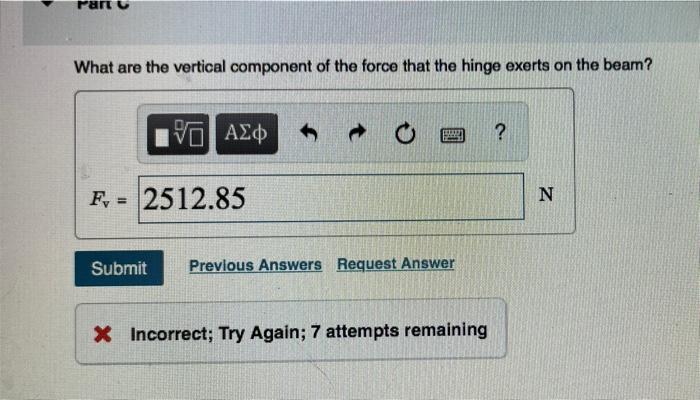

Part C What are the vertical component of the force that the hinge exerts on the beam? F₁ = 15. ΑΣΦ 2512.85 Submit C Previous Answers Request Answer X Incorrect; Try Again; 7 attempts remaining ? N
