Question 14 1 Point This Is The Board That Is Usually Used To Build Circuits In The Lab The Power Supply For The Circ 1 (237.87 KiB) Viewed 24 times

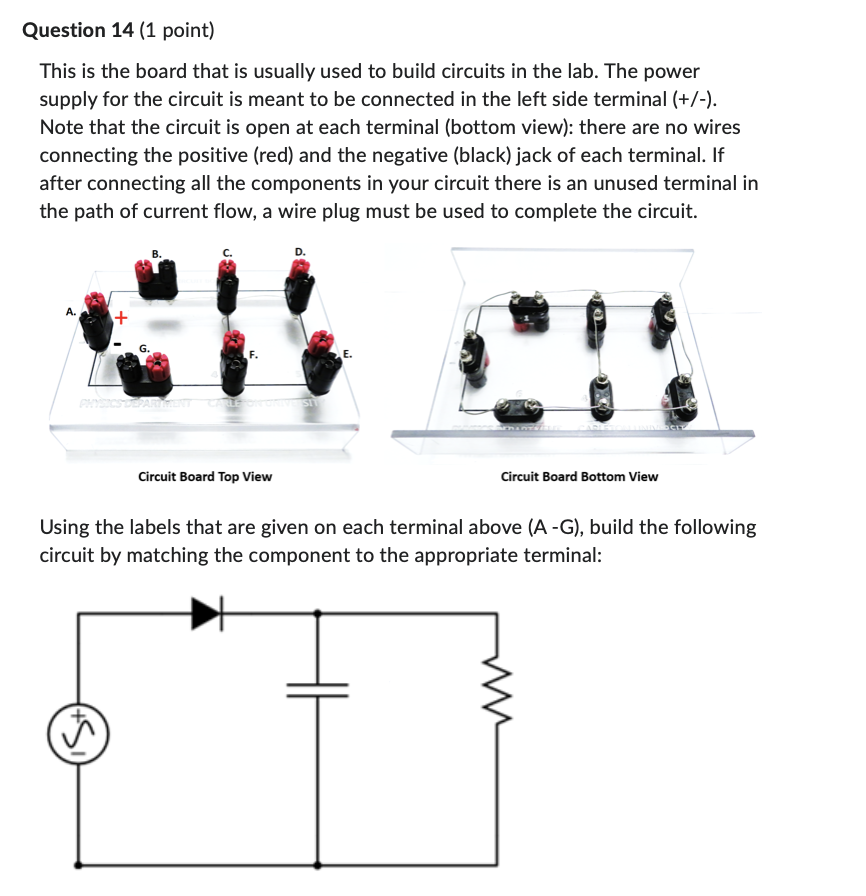

Question 14 (1 point) This is the board that is usually used to build circuits in the lab. The power supply for the circuit is meant to be connected in the left side terminal (+/-). Note that the circuit is open at each terminal (bottom view): there are no wires connecting the positive (red) and the negative (black) jack of each terminal. If after connecting all the components in your circuit there is an unused terminal in the path of current flow, a wire plug must be used to complete the circuit. A. + G. PHYSICS DEPARTMENT (+5₁ Circuit Board Top View INIVESCIT Circuit Board Bottom View Using the labels that are given on each terminal above (A -G), build the following circuit by matching the component to the appropriate terminal:
A. B. G. F. D. E. G 1. 2. 3. 4. 5. 6. 7. 8. Capacitor (C) Voltage Probe Inductor (L) Resistor (R) 00000000 ccc Function Generator Current Sensor (Ammeter) Plug (Wire) Diode
