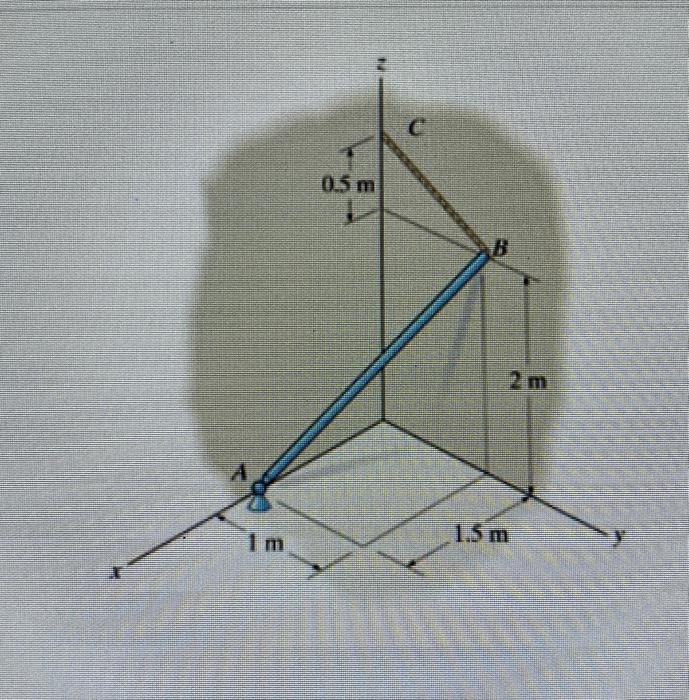

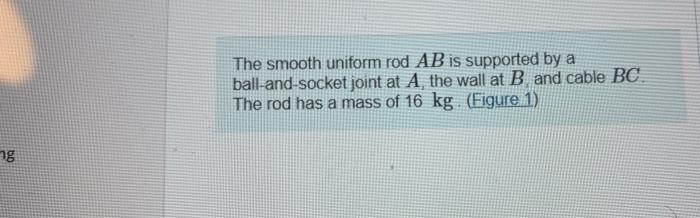

ng The smooth uniform rod AB is supported by a ball-and-socket joint at A, the wall at B, and cable BC. The rod has a mass of 16 kg. (Figure 1)
កា (៣ #B 15m
កា (៣ #B 15m
▼ Part A Determine the tension in the cable. Express your answer to three significant figures and include the appropriate units. TBC= 33.3 μÀ 20 N www ? Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining

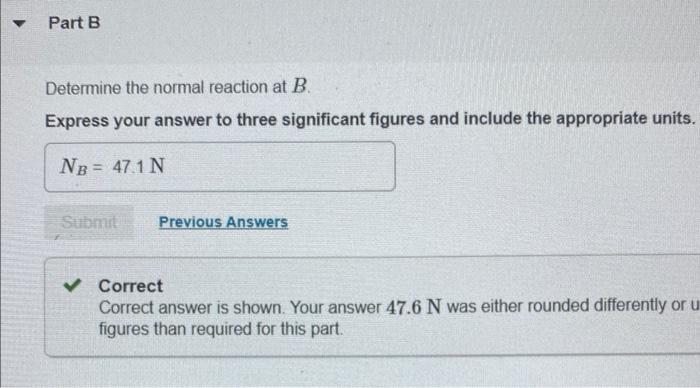

▼ Part B Determine the normal reaction at B. Express your answer to three significant figures and include the appropriate units. NB = 47.1 N Submit Previous Answers ✓ Correct Correct answer is shown. Your answer 47.6 N was either rounded differently or u figures than required for this part.

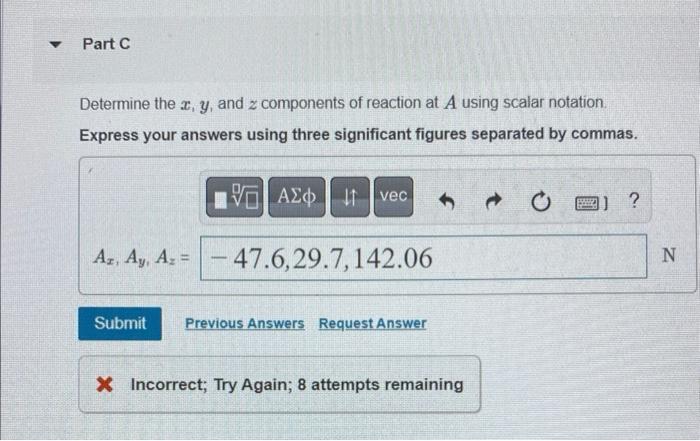

▼ Part C Determine the x, y, and 2 components of reaction at A using scalar notation. Express your answers using three significant figures separated by commas. 197| ΑΣΦ | 11 | vec Az, Ay, Az = -47.6,29.7, 142.06 Submit Previous Answers Request Answer X Incorrect; Try Again; 8 attempts remaining → ) ? N
