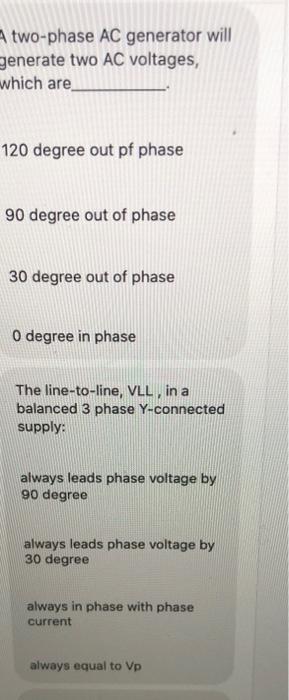

A two-phase AC generator will generate two AC voltages, which are 120 degree out of phase 90 degree out of phase 30 degree out of phase O degree in phase The line-to-line, VLL, in a balanced 3 phase Y-connected supply: always leads phase voltage by 90 degree always leads phase voltage by 30 degree always in phase with phase current always equal to Vp

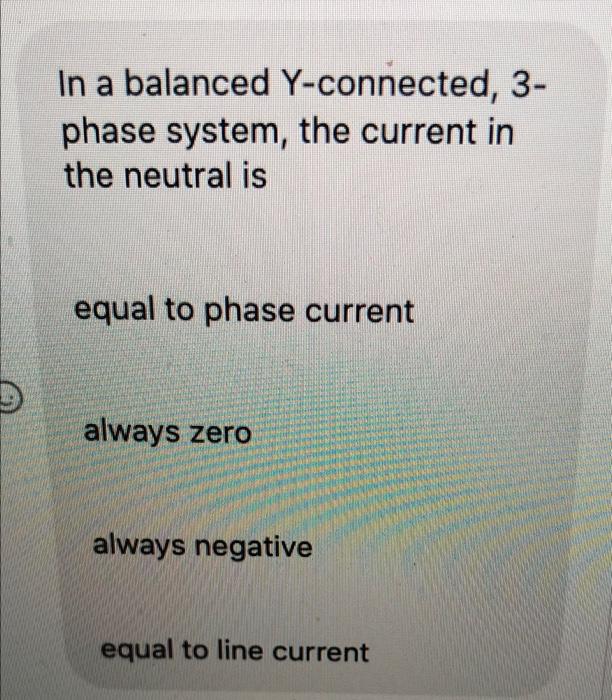

a In a balanced Y-connected, 3- phase system, the current in the neutral is equal to phase current D always zero always negative equal to line current
