Q4: In the circuit shown below w = 50 rad/sec and the equivalen impedance Zeq = 30 + 176 12. Find the type of the missin

Post by answerhappygod »

Q4 In The Circuit Shown Below W 50 Rad Sec And The Equivalen Impedance Zeq 30 176 12 Find The Type Of The Missin 1
Q4 In The Circuit Shown Below W 50 Rad Sec And The Equivalen Impedance Zeq 30 176 12 Find The Type Of The Missin 1 (50.05 KiB) Viewed 39 times

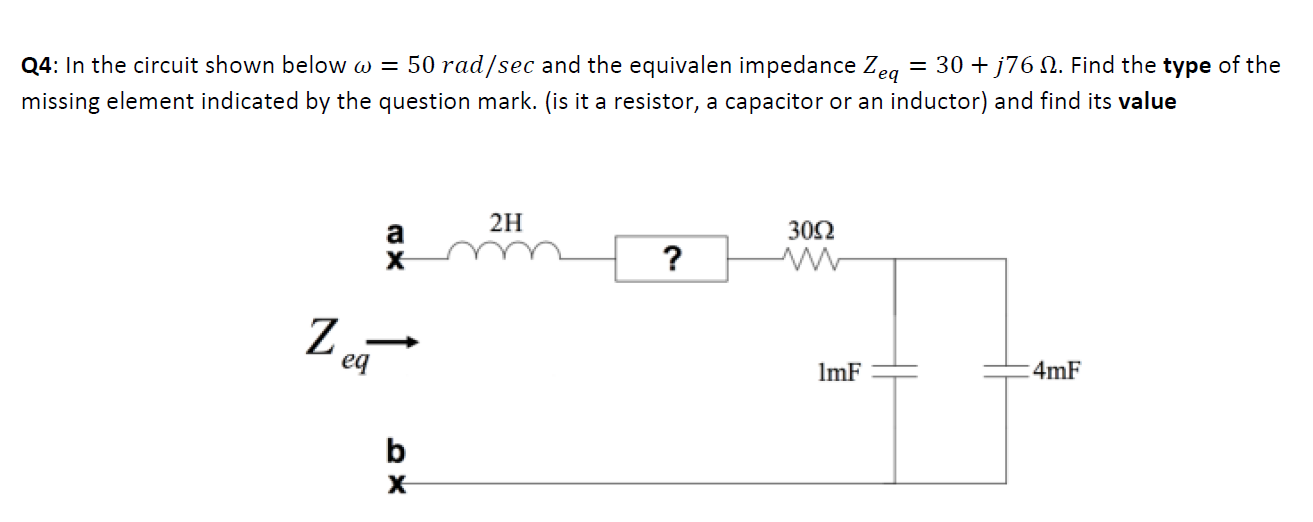

Q4: In the circuit shown below w = 50 rad/sec and the equivalen impedance Zeq = 30 + 176 12. Find the type of the missing element indicated by the question mark. (is it a resistor, a capacitor or an inductor) and find its value 2H a 3092 ? Z eq Z ImF 4mF b х
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
