a) In the regulator circuit below, determine Rext if the maximum internal regulator culent is to be 500 mA. Ignore the p

Post by answerhappygod »

A In The Regulator Circuit Below Determine Rext If The Maximum Internal Regulator Culent Is To Be 500 Ma Ignore The P 1
A In The Regulator Circuit Below Determine Rext If The Maximum Internal Regulator Culent Is To Be 500 Ma Ignore The P 1 (21.92 KiB) Viewed 25 times

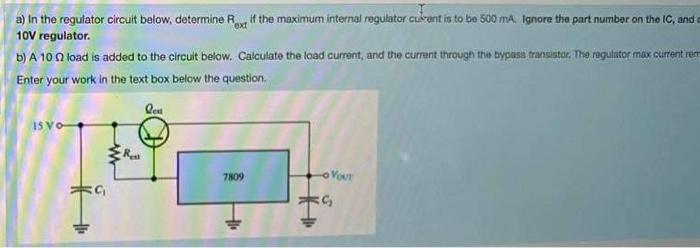

a) In the regulator circuit below, determine Rext if the maximum internal regulator culent is to be 500 mA. Ignore the part number on the IC, and 10V regulator b) A 10 load is added to the circuit below. Calculate the load current, and the current through this bypass trastor. The regulator max current rem Enter your work in the text box below the question le 15VO M R 7809 - Your
