previous see the questions very well sir
- Please By Using Matlab Solve This Question It Is Not Like Previous See The Questions Very Well Sir 4 Design A State Fee 1 (318.5 KiB) Viewed 24 times
criteria specification is up to you). (20%)
5) Design a corresponding observer and explain when it will be
used. (20%)
6) Provide relevant performance data from your simulated
studies. (15%)

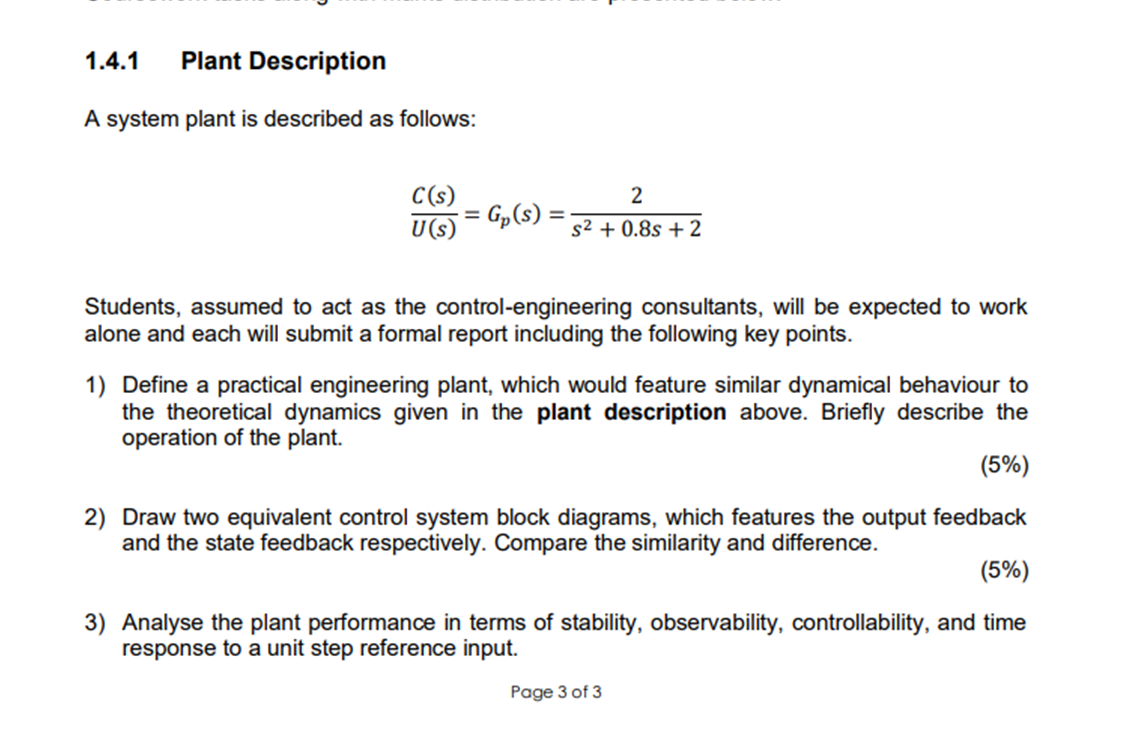

1.4.1 Plant Description A system plant is described as follows: 2 C(s) U(s) Gp(s) S2 + 0.8s + 2 Students, assumed to act as the control-engineering consultants, will be expected to work alone and each will submit a formal report including the following key points. 1) Define a practical engineering plant, which would feature similar dynamical behaviour to the theoretical dynamics given in the plant description above. Briefly describe the operation of the plant. (5%) 2) Draw two equivalent control system block diagrams, which features the output feedback and the state feedback respectively. Compare the similarity and difference. (5%) 3) Analyse the plant performance in terms of stability, observability, controllability, and time response to a unit step reference input. Page 3 of 3
