Question 4: CL03) 18 marks) 4.1 Simplify the following logic circuit using Boolean Algebra, then draw the circuit diagra

[answerhappygod]

Question 4 Cl03 18 Marks 4 1 Simplify The Following Logic Circuit Using Boolean Algebra Then Draw The Circuit Diagra 1 (63.69 KiB) Viewed 14 times

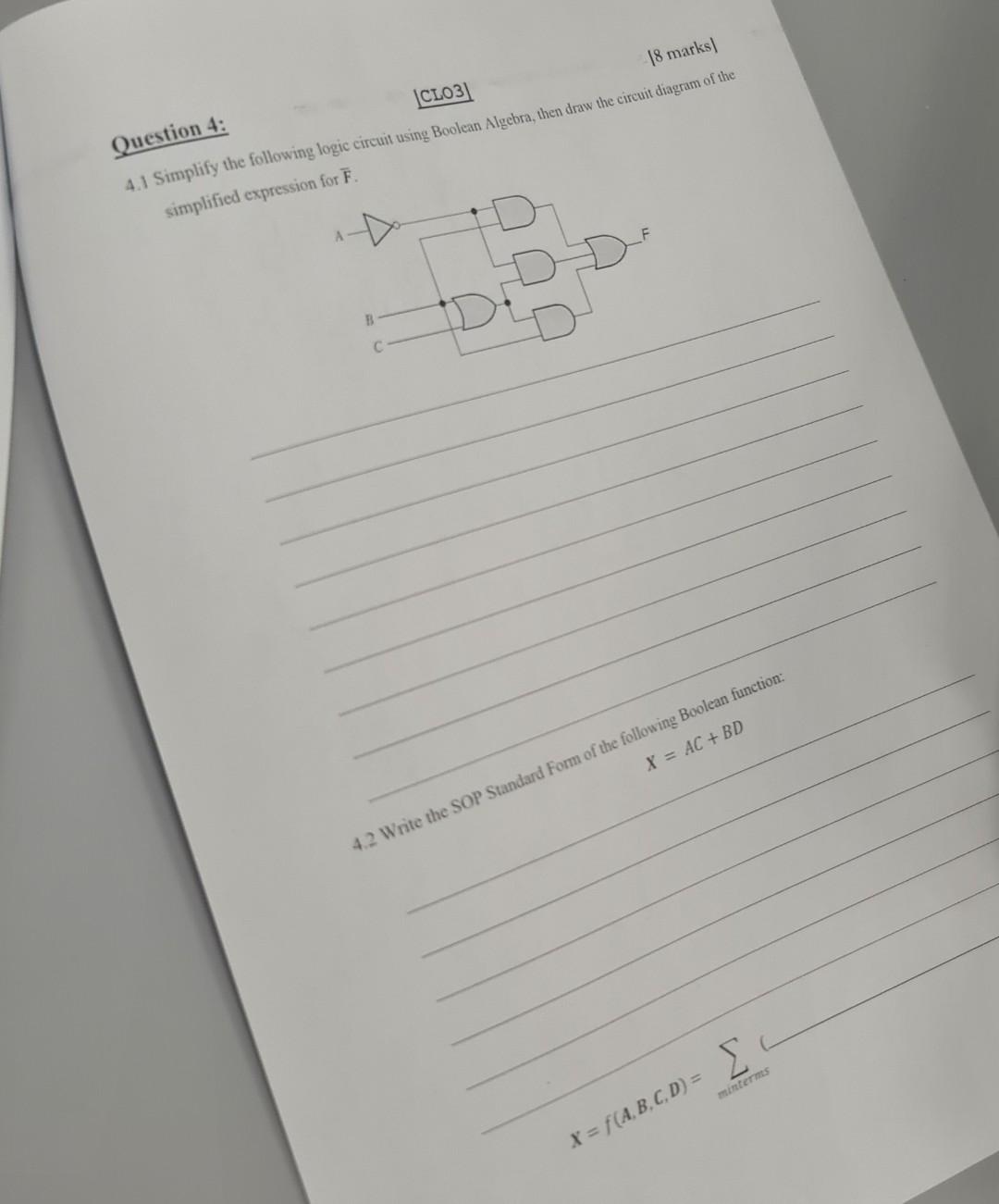

Question 4: CL03) 18 marks) 4.1 Simplify the following logic circuit using Boolean Algebra, then draw the circuit diagram of the simplified expression for F. А B De 4.2 Write the SOP Standard Form of the following Boolean function: X = AC + BD minterms X = f(A,B,C,D) = {
