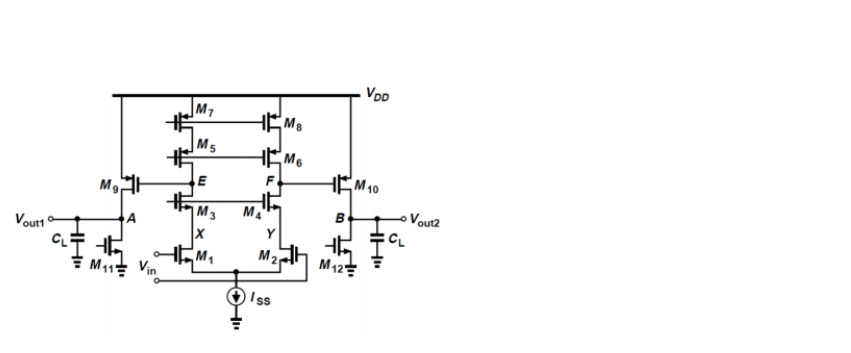

Find the small-signal voltage gain and pole of the circuit below
and draw a Bode plot. And find the pole change value after miller
compression. Explain the effect on zero after Miller compression
and find the Rz value for removing the 1st nondominant pole
Find The Small Signal Voltage Gain And Pole Of The Circuit Below And Draw A Bode Plot And Find The Pole Change Value Af 1 (55.54 KiB) Viewed 30 times
VOD M M5 EM EM 非 E M40 MA Voutt A B Voutz M3 X M Y 푸 5 M415 CL M2 Iss
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
