5. (15 points) Find Vo(t) in the following circuit using phasors and compare it with the value of Vo(t) when the circuit

Post by answerhappygod »

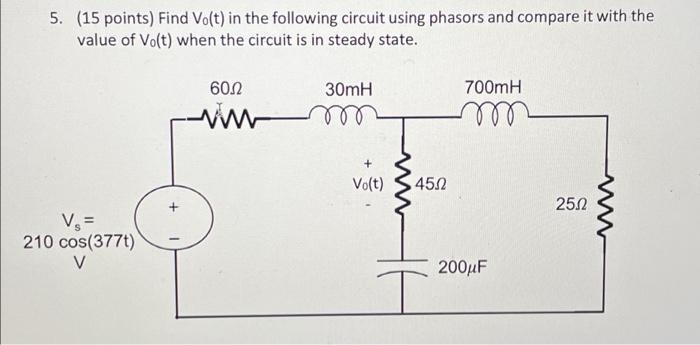

5 15 Points Find Vo T In The Following Circuit Using Phasors And Compare It With The Value Of Vo T When The Circuit 1
5 15 Points Find Vo T In The Following Circuit Using Phasors And Compare It With The Value Of Vo T When The Circuit 1 (26.15 KiB) Viewed 16 times
5. (15 points) Find Vo(t) in the following circuit using phasors and compare it with the value of Vo(t) when the circuit is in steady state. 60.12 will 30mH mo 700mH m Vo(t) 4522 + 25.12 V = 210 cos(377t) V 200uF
