Simulate the following problems using LT spice a. The circuit below contains two switches, both of which had been open f

[answerhappygod]

Simulate The Following Problems Using Lt Spice A The Circuit Below Contains Two Switches Both Of Which Had Been Open F 1 (181.22 KiB) Viewed 33 times

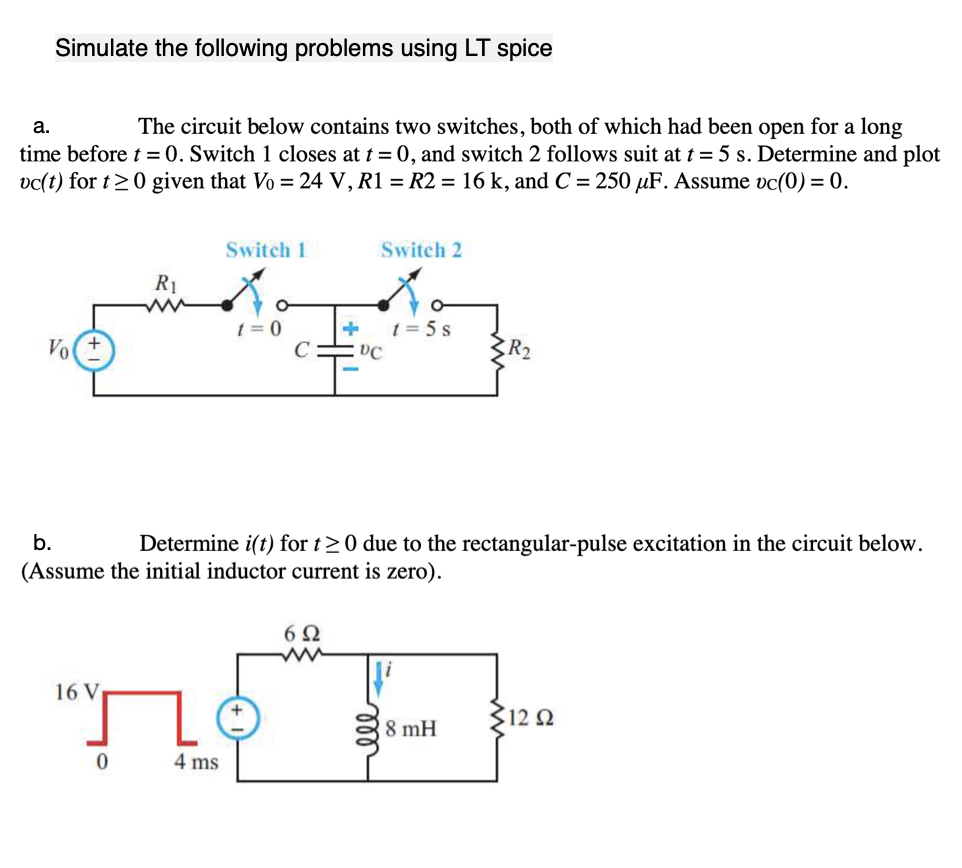

Simulate the following problems using LT spice a. The circuit below contains two switches, both of which had been open for a long time before t = 0. Switch 1 closes at t = 0, and switch 2 follows suit at t = 5 s. Determine and plot vc(t) for t> 0 given that Vo = 24 V, R1 = R2 = 16 k, and C = 250 uF. Assume vc(0) = 0. Switch 1 Switch 2 R1 Vo 1 = 0 С + t = 5 s DC R2 b. Determine i(t) for t> 0 due to the rectangular-pulse excitation in the circuit below. (Assume the initial inductor current is zero). 6 12 w 16 V " 31222 8 mH 0 4 ms
