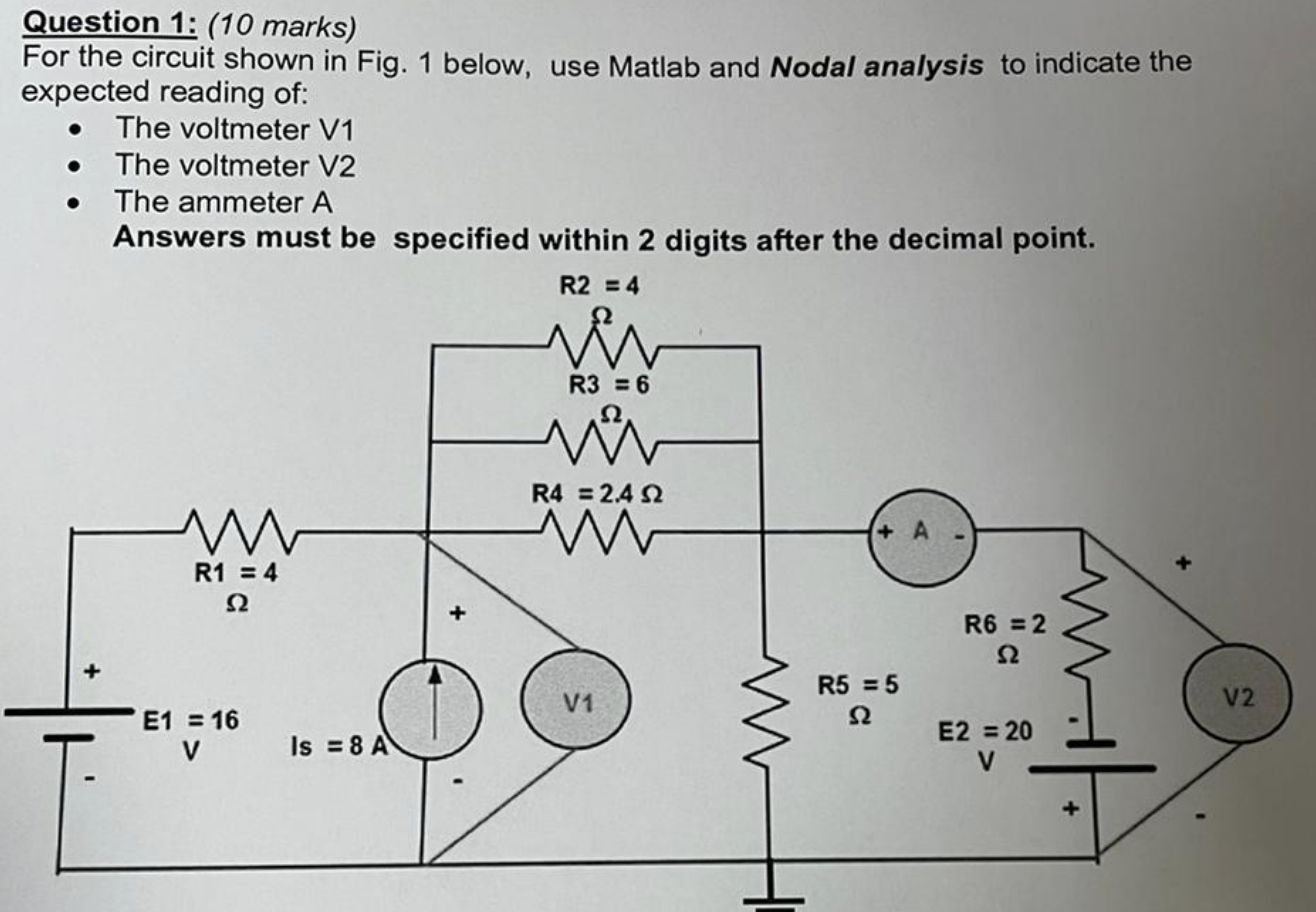

Question 1: (10 marks) For the circuit shown in Fig. 1 below, use Matlab and Nodal analysis to indicate the expected reading of: The voltmeter V1 The voltmeter V2 The ammeter A Answers must be specified within 2 digits after the decimal point. R2 = 4 R3 = 6 vis ni M R4 = 2.412 M + A R1 = 4 12 R6 = 2 Ω + w V1 R5 = 5 Ω V2 E1 = 16 V E2 = 20 Is = 8A +
