Vec Problem 3 (a) Derive the equations to determine the quiescent current and voltage. Describe steps. (b) Find the DC l

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Vec Problem 3 (a) Derive the equations to determine the quiescent current and voltage. Describe steps. (b) Find the DC l

Post by answerhappygod »

Vec Problem 3 A Derive The Equations To Determine The Quiescent Current And Voltage Describe Steps B Find The Dc L 1
Vec Problem 3 A Derive The Equations To Determine The Quiescent Current And Voltage Describe Steps B Find The Dc L 1 (31.92 KiB) Viewed 38 times

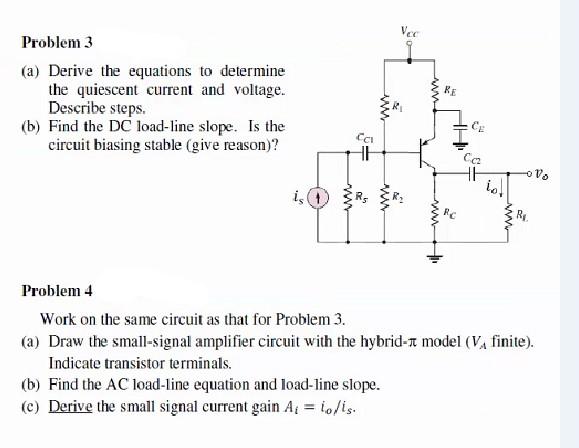

Vec Problem 3 (a) Derive the equations to determine the quiescent current and voltage. Describe steps. (b) Find the DC load-line slope. Is the circuit biasing stable (give reason)? RE ww ww Cai Сс -01 1o. 40 w W RE Problem 4 Work on the same circuit as that for Problem 3. (a) Draw the small-signal amplifier circuit with the hybrid-i model (V, finite). Indicate transistor terminals. (b) Find the AC load-line equation and load-line slope. (c) Derive the small signal current gain Ax = lolis.
