a) The mass flow rate through a convergent-divergent nozzle is 3.2 kg/s. The nozzle uses air as working fluid. The stagn

Post by answerhappygod »

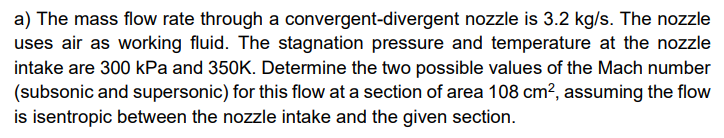

A The Mass Flow Rate Through A Convergent Divergent Nozzle Is 3 2 Kg S The Nozzle Uses Air As Working Fluid The Stagn 1
A The Mass Flow Rate Through A Convergent Divergent Nozzle Is 3 2 Kg S The Nozzle Uses Air As Working Fluid The Stagn 1 (45.23 KiB) Viewed 28 times
a) The mass flow rate through a convergent-divergent nozzle is 3.2 kg/s. The nozzle uses air as working fluid. The stagnation pressure and temperature at the nozzle intake are 300 kPa and 350K. Determine the two possible values of the Mach number (subsonic and supersonic) for this flow at a section of area 108 cm2, assuming the flow is isentropic between the nozzle intake and the given section.
