QUESTION 3 (15 marks) Determine the displacement at point C, and the slope at the support A for (a) and (b) of the beams

Post by answerhappygod »

Question 3 15 Marks Determine The Displacement At Point C And The Slope At The Support A For A And B Of The Beams 1
Question 3 15 Marks Determine The Displacement At Point C And The Slope At The Support A For A And B Of The Beams 1 (68.8 KiB) Viewed 35 times

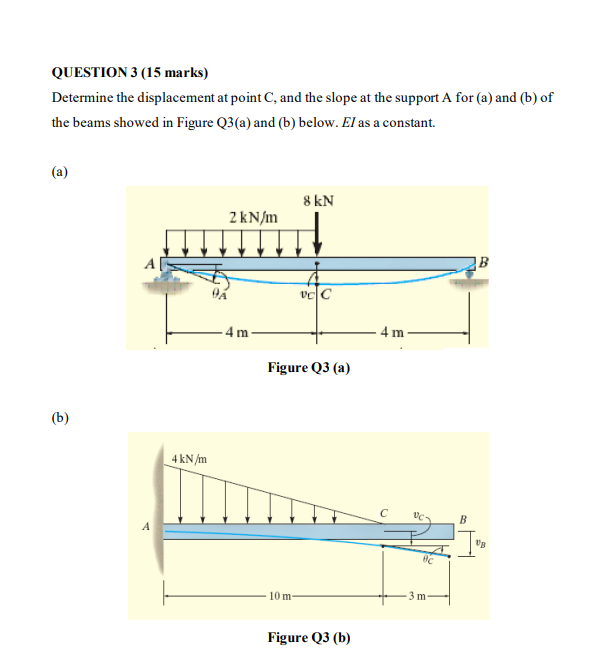

QUESTION 3 (15 marks) Determine the displacement at point C, and the slope at the support A for (a) and (b) of the beams showed in Figure Q3(a) and (b) below. El as a constant. (a) 8kN 2 kN/m VCC 4 m 4 m Figure Q3 (a) (b) 4 kN/m B Us 10 m 3 m Figure Q3 (b)
