The pressure coefficient profiles for flow over a cylinder under three conditions are shown below. Which case exhibits t

[answerhappygod]

The Pressure Coefficient Profiles For Flow Over A Cylinder Under Three Conditions Are Shown Below Which Case Exhibits T 1 (62.22 KiB) Viewed 30 times

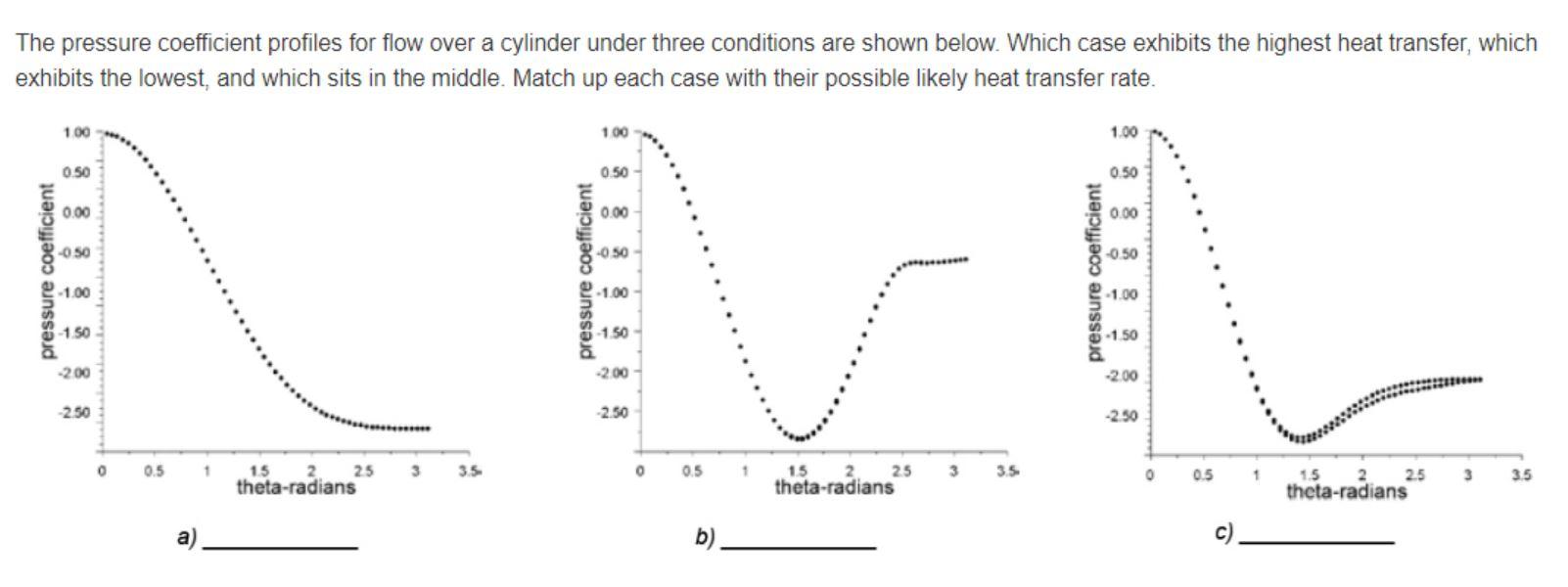

The pressure coefficient profiles for flow over a cylinder under three conditions are shown below. Which case exhibits the highest heat transfer, which exhibits the lowest, and which sits in the middle. Match up each case with their possible likely heat transfer rate. 100 100 1.00 0.50 0.50 0.50 0.00 0.00 0.00 -0.50 -0.50 -0.50 pressure coefficient pressure coefficient pressure coefficient 1.00 -1.00 -1.00 -1.50 -1.50 -1.50 200 -200 -200 2.50 -2.50 -2.50 0 0.5 1 15 2 25 theta-radians 3 3.5 0 0 0.5 3 3.5 15 3 25 theta-radians 0 0.5 1 15 2 25 theta-radians 3 3.5 a) b) c) -
