QUESTION3 (15 marks) Determine the displacement at point C, and the slope at the support A for (a) and (b) of the beams

Post by answerhappygod »

Question3 15 Marks Determine The Displacement At Point C And The Slope At The Support A For A And B Of The Beams 1
Question3 15 Marks Determine The Displacement At Point C And The Slope At The Support A For A And B Of The Beams 1 (69.17 KiB) Viewed 50 times
solve this asap please

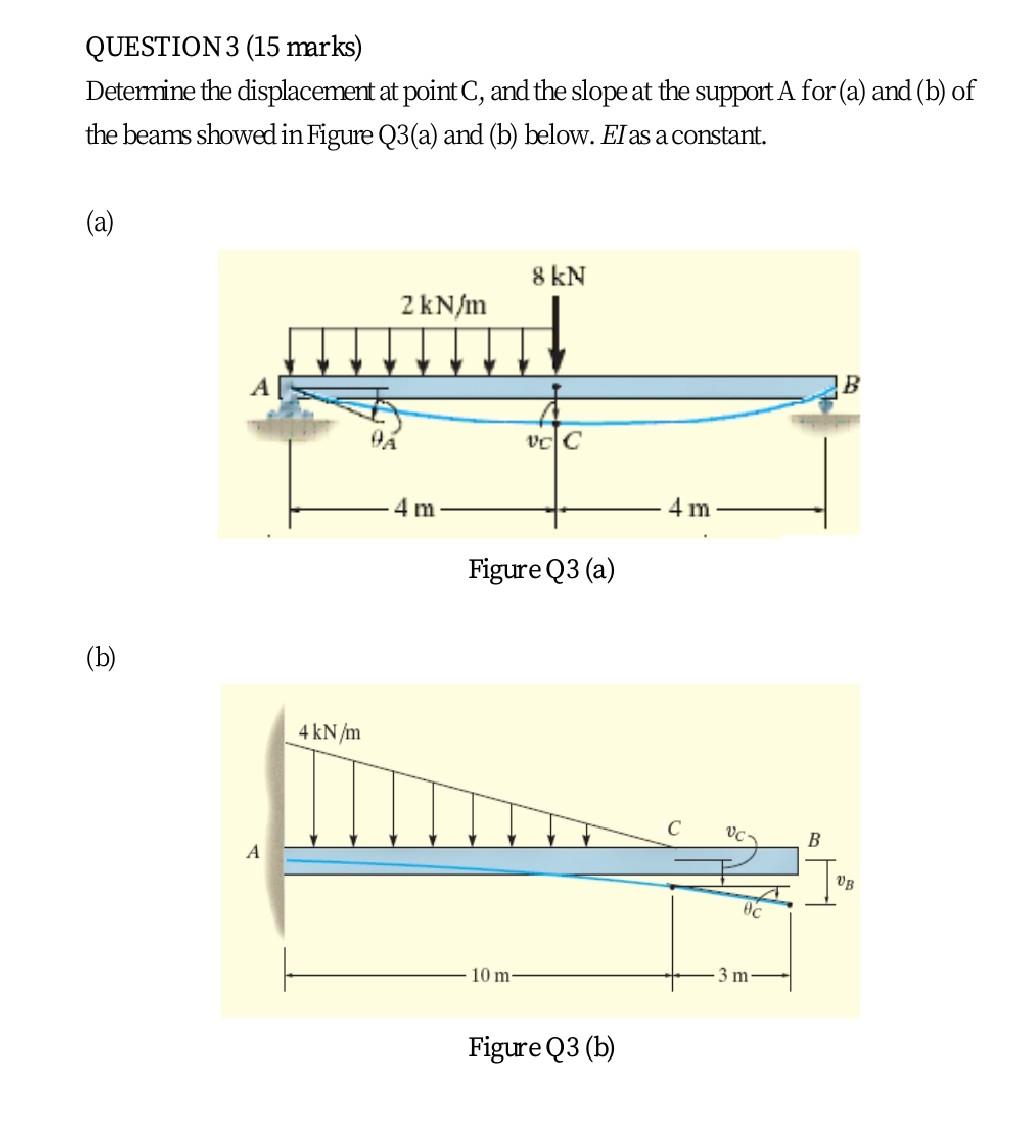

QUESTION3 (15 marks) Determine the displacement at point C, and the slope at the support A for (a) and (b) of the beams showed in Figure Q3(a) and (b) below. El as a constant. (a) 8 KN Z kNm PA VCC 4 m 4 m Figure Q3 (a) (b) 4 kN/m Vc B А UB 8c 10 m 3 m Figure Q3 (b)
