The bridge configuration shown in the figure below contains 3 known capacitors: C₁=91.2 nF, C₂=46 nF, C3=48.5 μF, and un

Post by answerhappygod »

 1
1 (42.47 KiB) Viewed 13 times

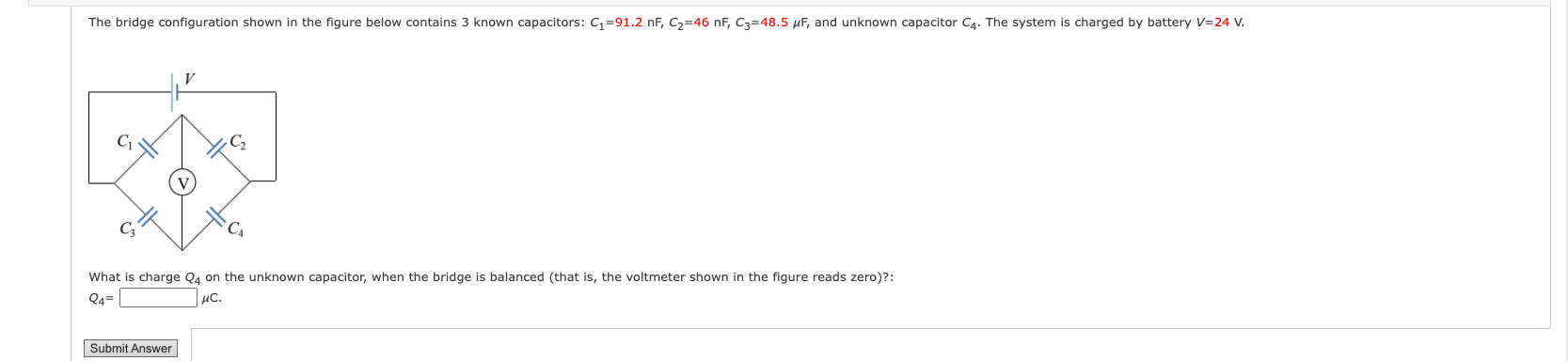

The bridge configuration shown in the figure below contains 3 known capacitors: C₁=91.2 nF, C₂=46 nF, C3=48.5 μF, and unknown capacitor C4. The system is charged by battery V=24 V. C₁ C₂ What is charge Q4 on the unknown capacitor, when the bridge is balanced (that is, the voltmeter shown in the figure reads zero)?: 24= μC. Submit Answer
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
