Shown in the figure below is a system of two blocks. One of these blocks is resting on a flat surface and the other one

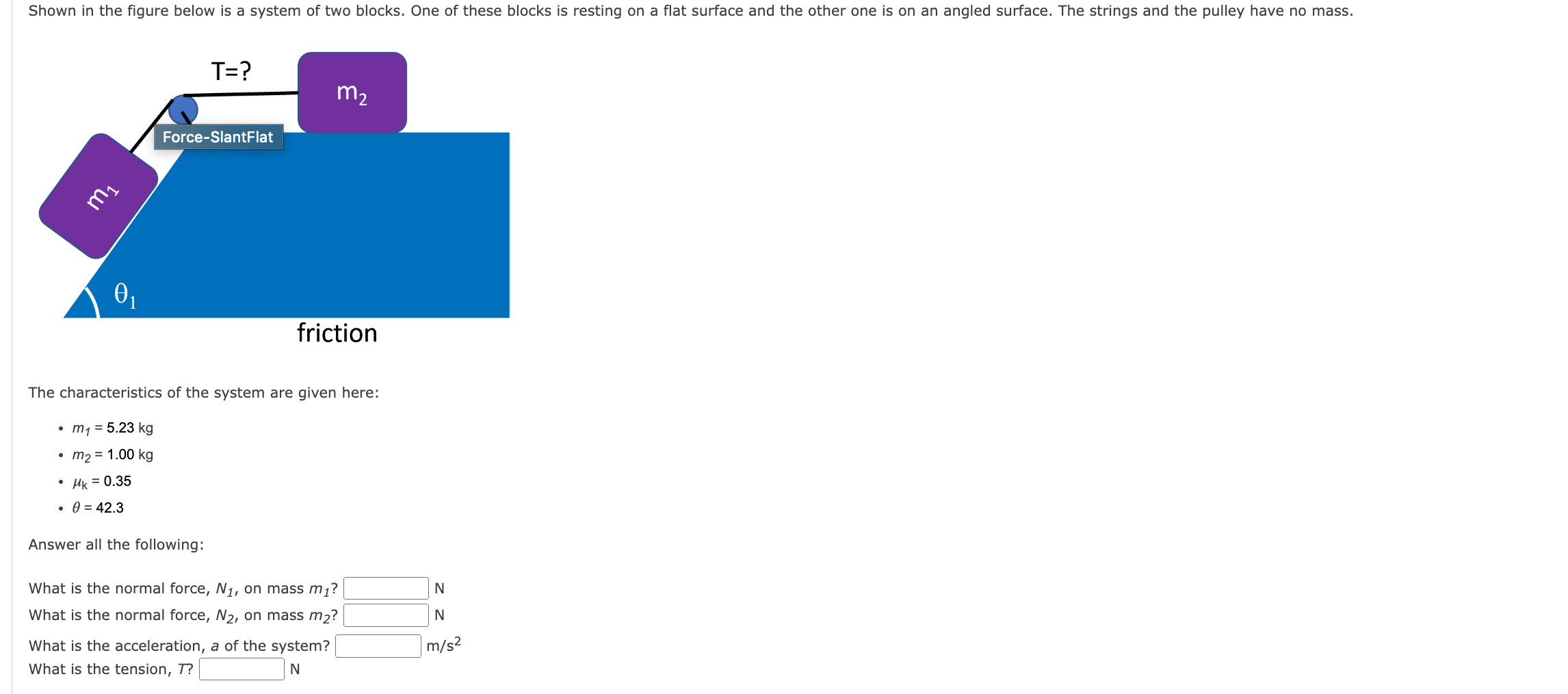

Shown in the figure below is a system of two blocks. One of these blocks is resting on a flat surface and the other one is on an angled surface. The strings and the pulley have no mass. M₁ 0₁ 1 T=? Force-SlantFlat Answer all the following: m₂ friction The characteristics of the system are given here: • m₁ = 5.23 kg • m₂ = 1.00 kg • μk = 0.35 • 0= 42.3 What is the normal force, N₁, on mass m₁? What is the normal force, N₂, on mass m2? What is the acceleration, a of the system? What is the tension, T? N N N m/s²
